General
Device Type

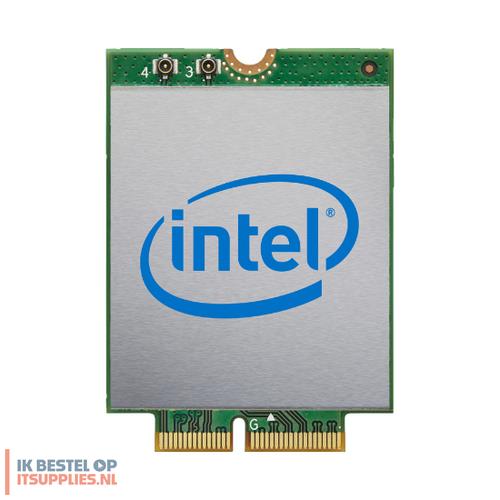

Network adapter
Interface (Bus) Type
M.2 2230
Networking
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2
Spread Spectrum Method
OFDMA
Data Transfer Rate
2.4 Gbps
Line Coding Format
1024 QAM
Frequency Band
2.4 GHz, 5 GHz, 6 GHz
Features
WMM support, dual-stream (2x2), Wi-Fi Direct, 802.1x authentication, 2x2 MU-MIMO technology, Wi-Fi 6E technology
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Miscellaneous
Encryption Algorithm
PEAP, WPA2, 128-bit AES, CCMP, EAP-SIM, EAP-AKA, WPA3, 256-bit AES-GCMP, EAP-TLS, EAP-TTLS, MSCHAPv2
Compliant Standards
UL, CB, IEC 60950-1, UEFI
Software / System Requirements
OS Required
Linux, Google Chrome OS, Windows 10
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
80 °C
Humidity Range Operating
50 - 90% (non-condensing)
