General
Device Type

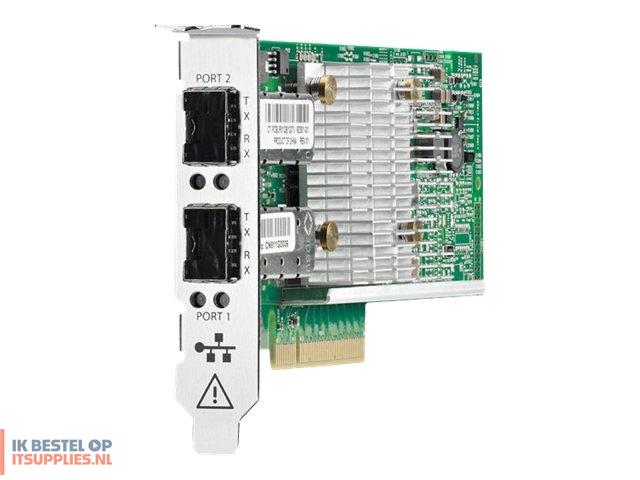

Network adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 3.0 x8
PCI Specification Revision
PCIe 3.0
Networking
Connectivity Technology
Wired
Data Link Protocol
10 Gigabit Ethernet
Data Transfer Rate
10 Gbps
Remote Management Protocol
SNMP
Status Indicators
Port status, link/activity
Features
IPv6 support, Jumbo Frames support, teaming support, PXE support, LSO, RSS, TSO
Compliant Standards
IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.1Qbh
Processor / Memory
Processor
1 x Broadcom BCM57810S
Expansion / Connectivity
Interfaces
2 x 10Gb Ethernet - SFP+
Compatible Slots
1 x PCI Express 3.0 x8
Miscellaneous
Included Accessories
Low-profile bracket, full-height bracket
Compliant Standards
FCC Class A certified, UL, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, FCC Part 15, WEEE, RoHS, ICES, VCCI V-3 Class A ITE
Software / System Requirements
OS Required
SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008 (32/64-bits), Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 - 95% (non-condensing)
Compatibility Information
Designed For
HPE Apollo 4200 Gen10, 4200 Gen10 for HPE Ezmeral Container Platform, 4200 Gen10 for HPE Ezmeral Tracking, 4200 Gen9 for Google
HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10
HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL388p Gen8 Base, DL560 Gen10 for SAP HANA Compute Block, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, ML110 Gen10 Solution, ML30 Gen10, ML30 Gen10 Entry, ML30 Gen10 Performance, ML30 Gen10 Solution, ML30 Gen9 Entry, ML30 Gen9 Solution, ML350 Gen10 High Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10 for HPE Ezmeral Container Platform, XL450 Gen10
HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node
HPE StoreEasy 1660 Expanded Storage
