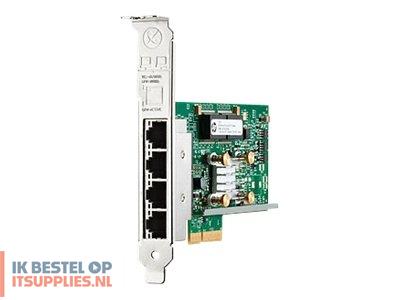

HPE 331T - Network adapter - PCIe 2.0 x4 low profile

Productcode: 647594-B21 | EAN/UPC: 0886111431069

€ 85,84 excl.btw

HPE 331T - Network adapter - PCIe 2.0 x4 low profile - Gigabit Ethernet x 4 - remarketed - for ProLiant DL360 Gen10, DL388p Gen8

Great hardware integration for low power
Energy-Efficient Ethernet (EEE) support
Optimized for virtual servers
Improved small packet performance
Jumbo frames support
Auto-negotiation
PXE boot support

Op voorraad: 0 stuk(s)

Levertijd:

Product:
HPE 331T - Network adapter - PCIe 2.0 x4 low profile

€ 103,87 incl. 21% btw € 85,84excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

HPE 331T - Network adapter - PCIe 2.0 x4 low profile - Gigabit Ethernet x 4 - remarketed - for ProLiant DL360 Gen10, DL388p Gen8

Product features

Quad-port 1 Gigabit Ethernet throughput
The HPE 331T adapter provides high full duplex Ethernet transfer rate per port and delivers outstanding network performance that improves response time and removes bottlenecks. Four ports on a single adapter are ideal for high density, I/O slot constrained servers, virtualization and security, applications, server consolidation, and increased network segmentation. The high total aggregate throughput in full-duplex mode also meets the needs for customers desiring high bandwidth but are not yet ready to move to 10 Gigabit Ethernet.
Jumbo frames support
Jumbo frames can help achieve higher throughput and better CPU utilization and are particularly useful for database transfer and tape backup operations.
802.1Q VLANs
IEEE 802.1Q VLAN protocol allows each physical port of the HPE 331T to be separated into multiple virtual NICs for added network segmentation and enhanced security and performance. VLANs increase security by isolating traffic between users. Limiting the broadcast traffic to within the same VLAN domain also improves performance.
Auto-negotiation
The HPE 331T automatically senses the speed of the device to which it is attached. It also automatically configures for full duplex, depending on the duplex mode of the switch, hub, or router connected to the adapter.
PXE boot support
Support for pre-boot execution environment (PXE) enables automatic deployment of computing resources remotely from anywhere. It allows a new or existing server to boot over the network and download software, including the operating system, from a management/deployment server at another location on the network. Additionally, PXE enables decentralized software distribution and remote troubleshooting and repairs.

Specificaties

General

Device Type

Network adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 2.0 x4

PCI Specification Revision

PCIe 2.0

Networking

Ports

Gigabit Ethernet x 4

Connectivity Technology

Wired

Cabling Type

Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Data Transfer Rate

1 Gbps

Status Indicators

Port transmission speed, link/activity

Features

Jumbo Frames support, PXE support, LSO

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az

Processor / Memory

Processor

1 x Broadcom BCM5719

Expansion / Connectivity

Interfaces

4 x 1000Base-T - RJ-45

Compatible Slots

1 x PCI Express 2.0 x4

Miscellaneous

Included Accessories

Low-profile bracket, full-height bracket

Compliant Standards

VCCI Class B ITE, EN 61000-3-2, EN55022, EN 61000-3-3, FCC Part 15 B, WEEE, RoHS

Pricing Type

Remarketed

Dimensions & Weight

Depth

13.2 cm

Height

6.9 cm

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

55 °C

Humidity Range Operating

10 - 90% (non-condensing)

Compatibility Information

Designed For

HPE Apollo 4200 Gen10, 4200 Gen9 for Google
HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10
HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL388p Gen8 Base, DL560 Gen10 for SAP HANA Compute Block, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, MicroServer Gen10, MicroServer Gen10 Solution, MicroServer Gen10 Stockage Collaboration, ML110 Gen10 Solution, ML30 Gen10, ML30 Gen10 Entry, ML30 Gen10 Performance, ML30 Gen10 Solution, ML30 Gen9 Entry, ML30 Gen9 Solution, ML350 Gen10 Base, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, ML350 Gen10 Sub-Entry, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL450 Gen10
HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node
HPE StoreEasy 1660 Expanded Storage

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
