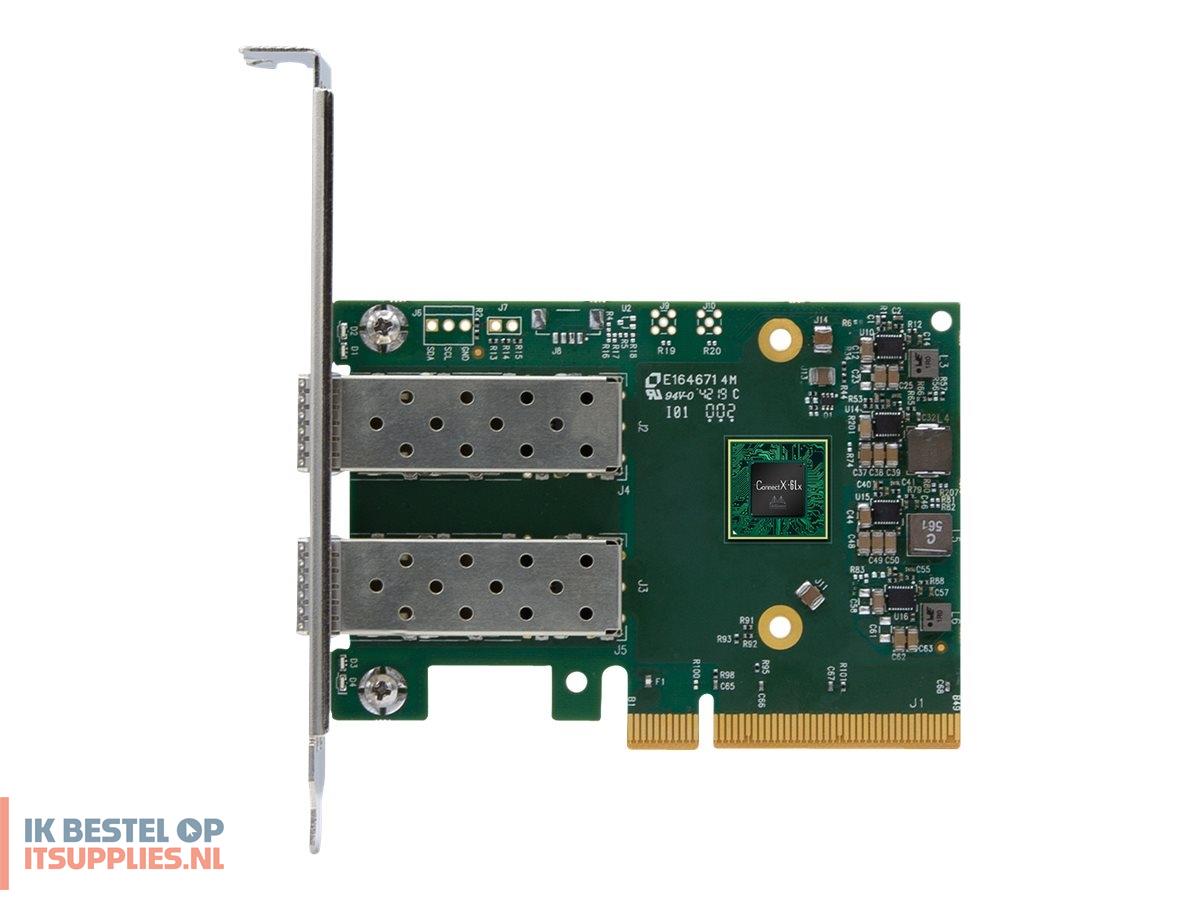

Lenovo ThinkSystem Mellanox ConnectX-6 Lx

Productcode: 4XC7A62580 | EAN/UPC: 0889488542611

€ 518,52 excl.btw

Lenovo ThinkSystem Mellanox ConnectX-6 Lx - Network adapter - PCIe 4.0 x8 low profile - 10/25 Gigabit SFP28 x 2 - for ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node

High performance with line speed message rate of 75Mpps
Advanced RoCE
ASAP2 - Accelerated Switching and Packet Processing
Overlay tunneling accelerations
Stateful rule checking for connection tracking
Hardware Root-of-Trust and secure firmware update
Best-in-class PTP performance
ODCC compatible

Op voorraad: 4 stuk(s)

Levertijd:

Product:
Lenovo ThinkSystem Mellanox ConnectX-6 Lx

€ 627,41 incl. 21% btw € 518,52excl. 21% btw

Winkelwagen Offerte

Omschrijving

Lenovo ThinkSystem Mellanox ConnectX-6 Lx - Network adapter - PCIe 4.0 x8 low profile - 10/25 Gigabit SFP28 x 2 - for ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node

Product features

Performance and security
ConnectX-6 Lx adapters deliver scalability, high-performance, advanced security capabilities and accelerated networking with the best total cost of ownership for 25GbE deployments in cloud, telco, and enterprise data centers. The adapters provide two ports of 25GbE, PCIe Gen4 and Gen3 x8 host connectivity, and are available either as a low-profile PCIe or OCP 3.0 form factor.
Best-in-Class SDN acceleration
Mellanox's ASAP2 - Accelerated Switch and Packet Processing technology offloads the Software-Defined Networking (SDN) data plane to the adapter, accelerating performance and offloading the CPU in virtualized or containerized cloud data centers. Customers can accelerate their data centers with an SR-IOV or VirtIO interface while continuing to enjoy their SDN protocol of choice. ConnectX-6 Lx ASAP2 rich feature set accelerates public and on-premises enterprise clouds, and boosts communication service providers (CSP) transition to NFV. ASAP2 supports these communication service providers by enabling packet encapsulations, such as MPLS and GTP, alongside cloud encapsulations, such as VXLAN, GENEVE and others.
Industry-leading RoCE
Following the Mellanox ConnectX tradition of industry-leading RoCE capabilities, ConnectX-6 Lx enables more scalable, resilient, and easy-to-deploy RoCE solutions - Zero Touch RoCE. ConnectX-6 Lx allows RoCE payloads to run seamlessly on existing networks without requiring network configuration (no PFC, no ECN) for simplified RoCE deployments. ConnectX-6 Lx ensures RoCE resiliency and efficiency at scale.
Secure your infrastructure
The adapters support ASAP2 connection-tracking hardware offload to improve L4 firewall performance. ConnectX-6 Lx also delivers supply chain protection with hardware Root-of-Trust (RoT) for Secure Boot as well as Secure Firmware Update using RSA cryptography and cloning-protection, via a device-unique key, to guarantee firmware authenticity.

Specificaties

General

Device Type

Network adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 4.0 x8

PCI Specification Revision

PCI 3.0, PCIe 4.0

Networking

Ports

10/25 Gigabit SFP28 x 2

Connectivity Technology

Wired

Data Link Protocol

10 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE), 25 Gigabit Ethernet

Network / Transport Protocol

SMB

Features

TCP/IP offloading, PXE support, LSO, LRO, RSS, SR-IOV, UDP/IP offloading, iSCSI remote boot, Ethernet remote boot, TSS, RoCE, NC-SI, VXLAN, NVGRE, RoCE v2, DCT, OpenStack compatible, MCTP over SMBus, burst buffer offload, GENEVE support, NVMe-oF, SMBus 2.0, MCTP over PCIe VDM

Compliant Standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1149.1, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by, IEEE 1149.6

Expansion / Connectivity

Interfaces

2 - SFP28

Miscellaneous

Compliant Standards

VCCI, CB, EMC, FCC, RoHS, ICES, cTUVus, RCM

Power

Power Consumption Operational

11.53 Watt

Dimensions & Weight

Depth

9.6 cm

Height

6.9 cm

Manufacturer Warranty

Service & Support

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

55 °C

Compatibility Information

Designed For

Lenovo ThinkAgile MX3330-F Appliance 7D19
Lenovo ThinkAgile MX3330-H Appliance 7D19
Lenovo ThinkAgile MX3331-F Certified Node 7D67
Lenovo ThinkAgile MX3331-H Certified Node 7D67
Lenovo ThinkAgile MX3530-H Hybrid Appliance 7D6B
Lenovo ThinkAgile MX3531-H Hybrid Certified Node 7D66
Lenovo ThinkAgile VX2330 Appliance 7Z62
Lenovo ThinkAgile VX3330 Appliance 7Z62
Lenovo ThinkAgile VX3331 7Z62
Lenovo ThinkAgile VX3530-G Appliance 7Z63
Lenovo ThinkAgile VX3575-G Integrated System 7D43
Lenovo ThinkAgile VX5530 Appliance 7Z63
Lenovo ThinkAgile VX5575 Integrated System 7D43
Lenovo ThinkAgile VX7330-N Appliance 7Z62
Lenovo ThinkAgile VX7530 Appliance 7Z63
Lenovo ThinkAgile VX7575 Integrated System 7D43
Lenovo ThinkAgile VX7576 Certified Node 7D43
Lenovo ThinkSystem SR630 V2 7Z71
Lenovo ThinkSystem SR650 V2 7D15, 7Z73
Lenovo ThinkSystem SR665 7D2W
Lenovo ThinkSystem SR670 V2 7Z23
Lenovo ThinkSystem SR850 V2 7D31, 7D32, 7D33
Lenovo ThinkSystem SR860 V2 7D42, 7Z59, 7Z60
Lenovo ThinkSystem ST650 V2 7Z74, 7Z75

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
