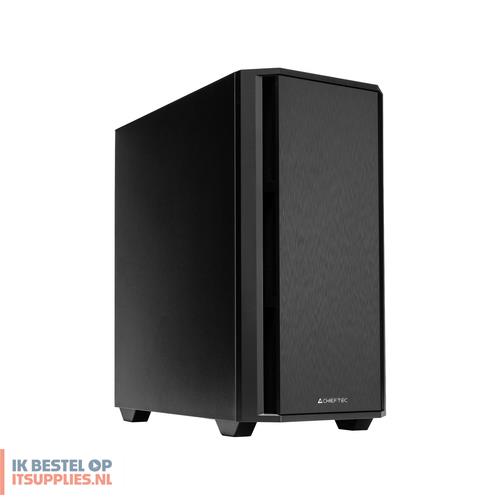

Chieftec Pro Mini AZ-01B-OP - MT

Productcode: AZ-01B-OP | EAN/UPC: 0753263078674

€ 46,16 excl.btw

Chieftec Pro Mini AZ-01B-OP - MT - mini ATX - no power supply (ATX) - black - USB/Audio

Comprehensive cooling with PWM support and space for up to 280 mm radiators
Supports both mini ATX and microATX motherboards for flexible system builds
Includes sound dampening panels for quieter operation
Features USB-C and USB 3.0 on the front panel for high-speed connectivity
Designed with a mini-tower form factor for a compact footprint

Op voorraad: 269 stuk(s)

Levertijd:

Product:
Chieftec Pro Mini AZ-01B-OP - MT

€ 55,85 incl. 21% btw € 46,16excl. 21% btw

Winkelwagen Offerte

Omschrijving

Chieftec Pro Mini AZ-01B-OP - MT - mini ATX - no power supply (ATX) - black - USB/Audio

Product features

Efficient cooling system
The Chieftec Pro Mini AZ-01B-OP features a comprehensive cooling system, including a rear 120 mm fan or radiator with PWM support, front and top fan mounts capable of supporting up to 280 mm radiators, and additional fan mounts on the PSU shroud. This setup ensures optimal airflow and cooling for high-performance components.
Versatile expansion options
With its mini-tower form factor, the Chieftec Pro Mini AZ-01B-OP offers ample expansion possibilities. It includes internal bays for both 3.5" and 2.5" drives, four expansion slots, and supports mini ATX and microATX motherboards, making it a flexible choice for building a compact yet powerful system.
Sound dampening design
Designed with a focus on quiet operation, the Chieftec Pro Mini AZ-01B-OP features sound dampening panels on both the front and sides. This minimizes noise, making it an excellent choice for users seeking a quieter computing experience.
Convenient connectivity
The front panel of the Chieftec Pro Mini AZ-01B-OP is equipped with a variety of connectors, including USB-C, USB 3.0, and USB 2.0 ports, along with audio line-out and microphone jacks, offering easy access to connect peripherals and audio devices.

Specificaties

General

Form Factor

Mini tower

Max Mainboard Size

Mini ATX

Supported Motherboards

Mini-ATX, microATX

Internal Bays Qty

Product Material

SPCC

Colour

Black

Cooling System

Rear: 120 mm fan x 1 / 1 x 120 mm fan or 120 mm radiator supported, Pulse-width modulation (PWM) support
Front: fan mount / 3 x 120 mm fan or 240/280 mm radiator supported
Top: fan mount / 2 x 120/140 mm fan or 1 x 240/280mm radiator supported
PSU shroud: fan mount / 2 x 120 mm fan supported

CPU Cooler Max Height

165 mm

Video Card Max Length

330 mm

Power Supply Max Length

180 mm

System Cabinet Features

Sound dampening front panel, sound dampening side panels

Expansion / Connectivity

Expansion Bays

1 (total) / 1 (free) x internal - 3.5"
2 (total) / 2 (free) x internal - 2.5"

Expansion Slots

Interfaces

1 x USB-C
1 x USB 3.0
1 x USB 2.0
1 x audio line-out - mini-jack
1 x microphone - mini-jack

Miscellaneous

Included Accessories

Screws

Compliant Standards

EAC, Interseroh, RoHS, WEEE

Power

Power Device

No power supply

Specification Compliance

ATX

Dimensions & Weight

Width

21.2 cm

Depth

36 cm

Height

42 cm

Weight

5.15 kg

Dimensions & Weight (Shipping)

Shipping Weight

6 kg

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
