General
Device Type

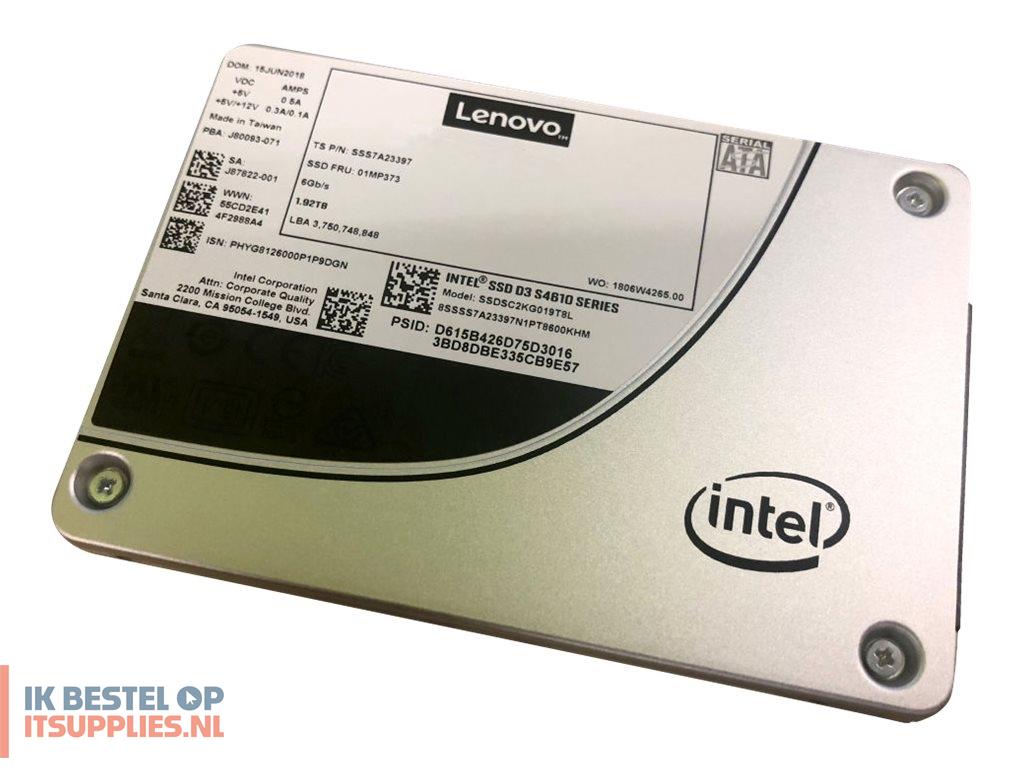

Solid state drive - hot-swap
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D triple-level cell (TLC)
Features
High Endurance Technology (HET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, S.M.A.R.T.
Performance
Drive Writes Per Day (DWPD)
3.4
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
560 MBps (read) / 510 MBps (write)
4KB Random Read
90000 IOPS
4KB Random Write
51000 IOPS
Reliability
Non-Recoverable Errors
1 per 10^17
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s
Power
Power Consumption
2.7 Watt (typical)
Miscellaneous
Included Accessories
Hot-plug tray
Compliant Standards
BSMI CNS 13438, EN 60950-1 Second Edition, RoHS 2011/65/EU, LVD 2006/95/EC, EN55022:2006, WEEE 2002/96/EC, EN55024:1998, CAN/CSA-CEI/IEC CISPR 22:02, FCC CFR47 Part 15 B Class B, AS/NZS 3584, UL/CSA60950-1 (2nd Edition), KCC Article 11.1
Dimensions & Weight (Shipping)
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Humidity Range Operating
5 - 95% (non-condensing)
Shock Tolerance (operating)
1000 g @ 0.5 ms
Vibration Tolerance (operating)
2.17 g @ 5-700 Hz
Vibration Tolerance (non-operating)
3.13 g @ 5-800 Hz
Compatibility Information
Designed For
Lenovo ThinkAgile HX1330 Appliance 7Z85 (2.5")
Lenovo ThinkAgile HX1331 Certified Node 7D52 (2.5")
Lenovo ThinkAgile HX2330 Appliance 7Z85 (2.5")
Lenovo ThinkAgile HX2331 Certified Node 7D52 (2.5")
Lenovo ThinkAgile HX3330 Appliance 7Z85 (2.5")
Lenovo ThinkAgile HX3331 Certified Node 7D52 (2.5")
Lenovo ThinkAgile HX3375 Appliance 7D5U (2.5")
Lenovo ThinkAgile HX3376 Certified Node 7D5U (2.5")
Lenovo ThinkAgile HX5530 Appliance 7Z82 (2.5")
Lenovo ThinkAgile HX5531 Certified Node 7Z84 (2.5")
Lenovo ThinkAgile HX7530 Appliance 7Z82 (2.5")
Lenovo ThinkAgile HX7531 Certified Node 7Z84 (2.5")
Lenovo ThinkAgile HX7820 Appliance 7Y95 (2.5"), 7Z08 (2.5")
Lenovo ThinkAgile MX3330-F Appliance 7D19 (2.5")
Lenovo ThinkAgile MX3331-F Certified Node 7D67 (2.5")
Lenovo ThinkAgile VX 1SE Certified Node 7Z58 (2.5")
Lenovo ThinkAgile VX Certified Node 7Y94 (2.5"), 7Z12 (2.5")
Lenovo ThinkAgile VX1320 Appliance 7Z58 (2.5")
Lenovo ThinkAgile VX3320 Appliance 7Y93 (2.5")
Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5")
Lenovo ThinkAgile VX3331 7Z62 (2.5")
Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX3575-G Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX3720 Appliance 7Y92 (2.5")
Lenovo ThinkAgile VX5575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7520 Appliance 7Y94 (2.5")
Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5")
Lenovo ThinkAgile VX7575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7576 Certified Node 7D43 (2.5")
Lenovo ThinkAgile VX7820 Appliance 7Z13 (2.5")
Lenovo ThinkSystem SR630 V2 7Z71 (2.5")
Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73 (2.5")
Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5")
Lenovo ThinkSystem SR670 V2 7Z23 (2.5")
Lenovo ThinkSystem SR850 V2 7D32 (2.5")
Lenovo ThinkSystem SR860 V2 7Z60 (2.5")
Lenovo ThinkSystem ST650 V2 7Z74 (2.5"), 7Z75 (2.5")
