General
Device Type

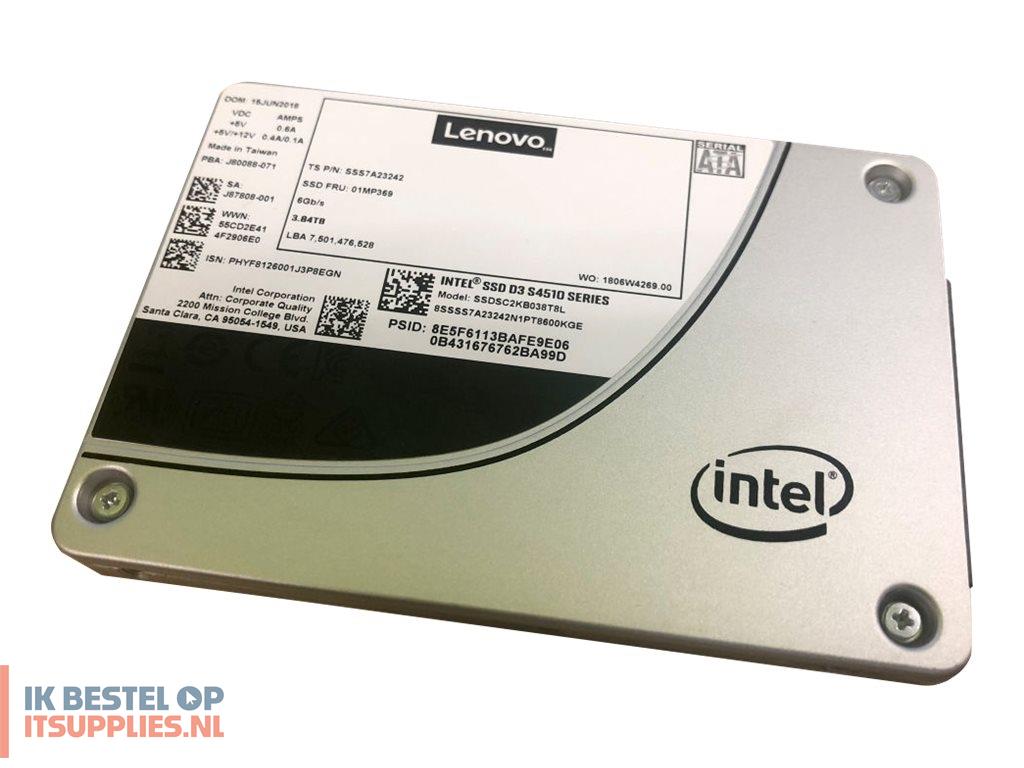

Solid state drive - hot-swap
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D triple-level cell (TLC)
Features
Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, Standard Endurance Technology (SET), S.M.A.R.T.
Performance
Drive Writes Per Day (DWPD)
1.9
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
560 MBps (read) / 510 MBps (write)
4KB Random Read
90000 IOPS
4KB Random Write
36000 IOPS
Reliability
Non-Recoverable Errors
1 per 10^17
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s
Power
Power Consumption
2.7 Watt (typical)
Miscellaneous
Included Accessories
Hot-plug tray
Compliant Standards
BSMI CNS 13438, EN 60950-1 Second Edition, RoHS 2011/65/EU, LVD 2006/95/EC, EN55022:2006, WEEE 2002/96/EC, EN55024:1998, CAN/CSA-CEI/IEC CISPR 22:02, FCC CFR47 Part 15 B Class B, AS/NZS 3584, UL/CSA60950-1 (2nd Edition), KCC Article 11.1
Dimensions & Weight (Shipping)
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Humidity Range Operating
5 - 95% (non-condensing)
Shock Tolerance (operating)
1000 g @ 0.5 ms
Vibration Tolerance (operating)
2.17 g @ 5-700 Hz
Vibration Tolerance (non-operating)
3.13 g @ 5-800 Hz
Compatibility Information
Designed For
Lenovo ThinkAgile VX 1SE Certified Node 7Z58 (3.5") ¦ Lenovo ThinkAgile VX2320 Appliance 7Y93 (3.5") ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 (3.5") ¦ Lenovo ThinkAgile VX3331 7Z62 (3.5") ¦ Lenovo ThinkAgile VX5520 Appliance 7Y94 (3.5") ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 (3.5") ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 (3.5") ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 (3.5") ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 (3.5") ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 (3.5") ¦ Lenovo ThinkSystem SR250 (3.5") ¦ Lenovo ThinkSystem SR530 (3.5") ¦ Lenovo ThinkSystem SR550 (3.5") ¦ Lenovo ThinkSystem SR570 (3.5") ¦ Lenovo ThinkSystem SR590 (3.5") ¦ Lenovo ThinkSystem SR630 (3.5") ¦ Lenovo ThinkSystem SR630 V2 7Z71 (3.5") ¦ Lenovo ThinkSystem SR650 (3.5") ¦ Lenovo ThinkSystem SR650 V2 7D15 (3.5"), 7Z73 (3.5") ¦ Lenovo ThinkSystem SR665 7D2W (3.5") ¦ Lenovo ThinkSystem SR670 V2 7Z23 (3.5") ¦ Lenovo ThinkSystem ST250 (3.5") ¦ Lenovo ThinkSystem ST550 (3.5") ¦ Lenovo ThinkSystem ST650 V2 7Z74 (3.5"), 7Z75 (3.5")
