General
Bus Type
PCI Express 4.0 x16
Graphics Engine

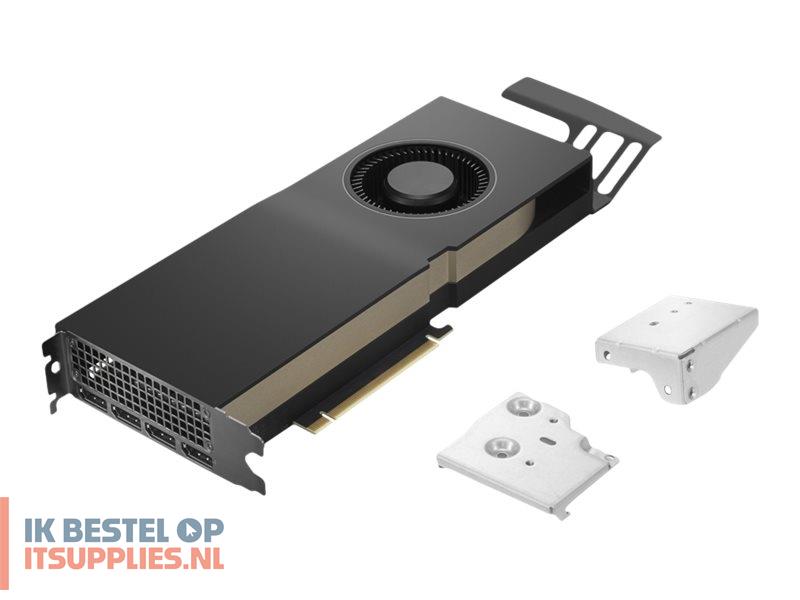

NVIDIA RTX A5500
Max Resolution
7680 x 4320 at 60 Hz
Interfaces Details
4 x DisplayPort (version 1.4a)
API Supported
DirectCompute, OpenGL 4.6, DirectX 12 Ultimate, OpenCL 3.0, CUDA 11.6, Vulkan 1.3, Shader Model 6.6
Features
Error Correcting Codes (ECC) Memory, NVIDIA Mosaic, Nvidia GPUDirect, Quadro Sync 2, 3D Stereo Connectivity, dual slot width, 320 NVIDIA Tensor Cores, NVIDIA Ampere GPU technology, NVIDIA RTX IO, NVIDIA RTX Experience, 80 NVIDIA RT Cores, 34.1 Tflops of single-precision, 66.6 Tflops RT Core performance, 272.8 Tflops tensor performance, Nvidia RTX Desktop Manager, Nvidia Virtual GPU, AV1 decode support, HDCP
Memory
System Requirements
OS Required
Windows 10, Windows 11
Additional Requirements
8 pin PCI Express power connector
Miscellaneous
Power Consumption Operational
230 Watt
Compliant Standards
VCCI, BSMI, CB, FCC, KCC, ICES, RCM, HDCP 2.2, Morocco
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90%
Compatibility Information
Designed For
Lenovo ThinkStation P3 30GS
