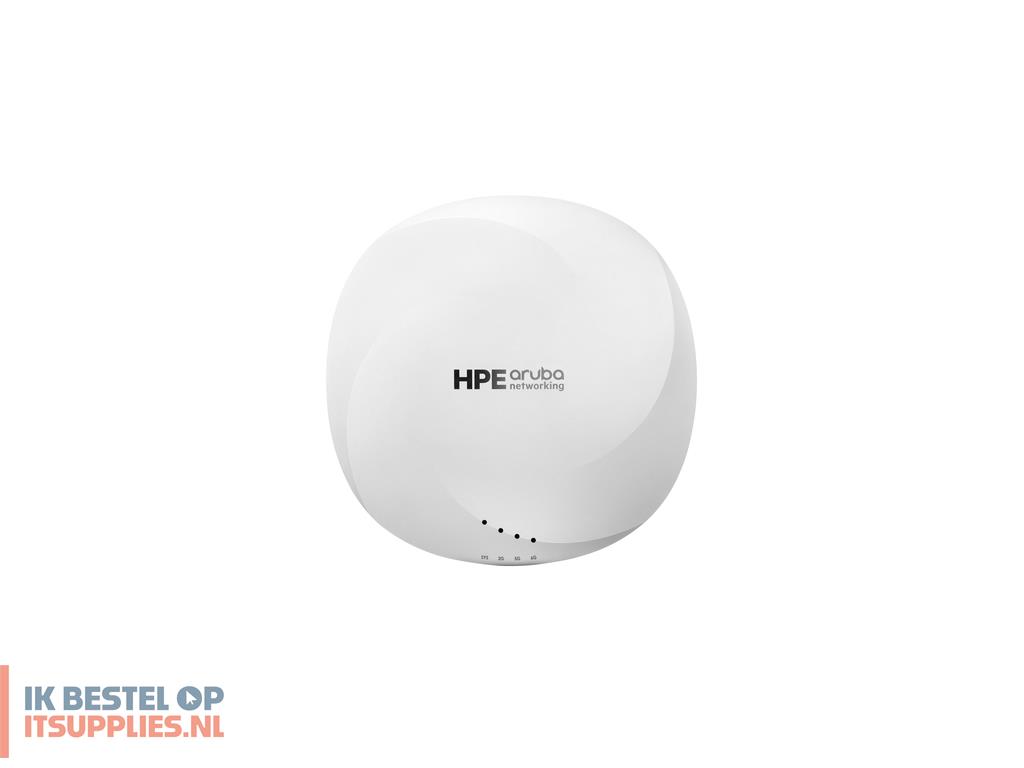

HPE Aruba Networking AP-635 (RW) Tri Radio 2x2 802.11ax Wi-Fi 6E Internal Antennas Campus AP. 2,4 GHz, 5 GHz, 6 GHz, Maximale overdrachtssnelheid van gegevens: 2400 Mbit/s. Ondersteunde beveiligingsalgoritmen: WPA, WPA2, WPA3. Ethernet LAN, data-overdrachtsnelheden: 2500,5000 Mbit/s. Power over Ethernet (PoE). Kleur van het product: Wit
Kenmerken
Maximale overdrachtssnelheid van gegevens
2400 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
2500,5000 Mbit/s
Frequentieband
20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps
Netwerkstandaard
IEEE 802.11ax, IEEE 802.11mc
Modulatie
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Beveiliging
Ondersteunde beveiligingsalgoritmen
WPA, WPA2, WPA3
Beheerfuncties
Toegangspuntbeheer
On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
2
Energie
Power over Ethernet (PoE)
Ja
Design
Kleur van het product
Wit
Aanbevolen gebruik
Binnen
Antenne
Type antennerichting
Omni-directioneel
Antennefuncties
Ingebouwde antenne
Antenne versterkingsniveau (max)
7 dBi
Prestatie
Compatibele besturingssystemen
AP-634 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-634 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.03 AP-635: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.9.0.0, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-634 is only supported on HPE Aruba Networking OS 10.7.0.0 and later deployments and HPE Aruba Networking OS 8.12.0.0 and later deployments that include a HPE Aruba Networking Mobility Conductor. Standard power operation is not supported on Instant OS deployments or 8.x HPE Aruba Networking OS deployments without a HPE Aruba Networking Mobility Conductor.
Certificaten
Certificaten van naleving
Federal Communications Commission (FCC), ISED, CE, Elektromagnetische compatibiliteit (EMC), Laagspanningsrichtlijn (LVD)
Certificering
UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5)
Overige specificaties
Montage
A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately).
Aansluitingen
E0, E1: Two Ethernet wired network ports (RJ-45); Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX; 2.5Gbps speed complies with NBase-T and 802.3bz specifications; POE-PD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher); 802.3az Energy Efficient Ethernet (EEE)
Gewicht (imperiaal)
1,3 kg (2.86 lbs)
Eisen aan de omgeving
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-25 - 55 °C
Luchtvochtigheid bij opslag
10 - 100 procent
