Overview

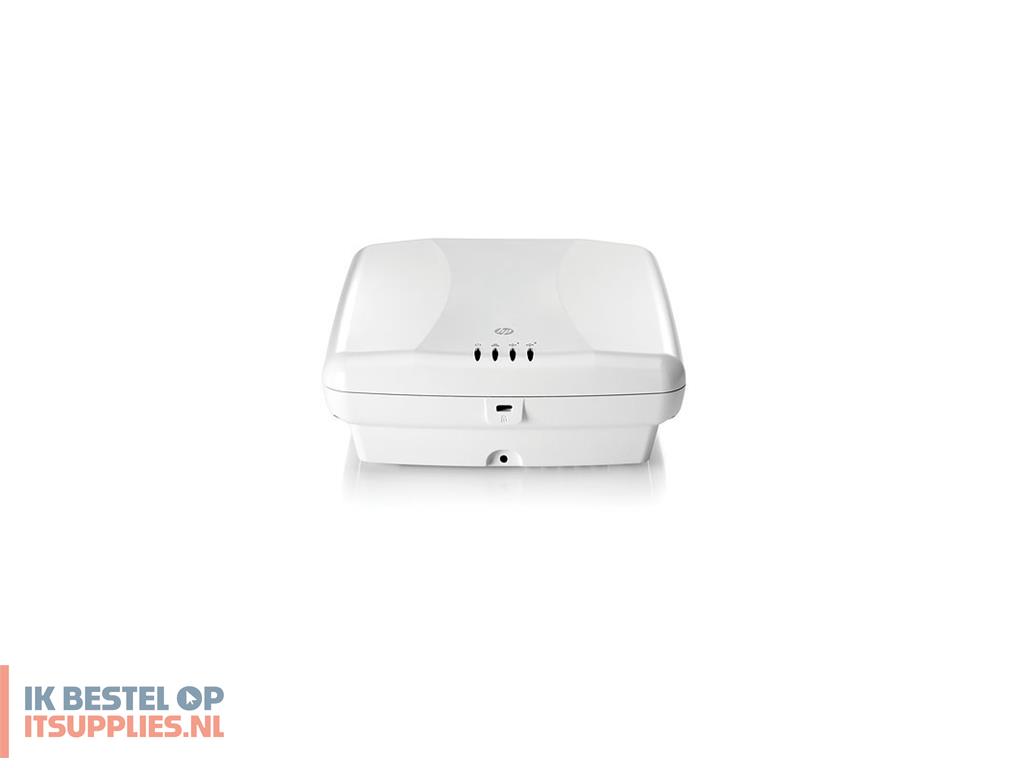

The HP MSM 802.11n Dual Radio Access Point Series works in unison with the HP controllers to deliver a high performance WLAN solution. Offering near gigabit client access and increased reliability they are ideal for voice and multi-media communications while providing full compatibility with legacy 802.11 clients and existing HP wireless controllers.
Built-in Spectral Analysis and integrated Wireless IDS/IPS provides detection, classification and intelligent avoidance of non-802.11 interference and comprehensive threat protection. Access points can be deployed in managed or autonomous mode.
Features
Enhanced Wi-Fi Performance
• The HP MSM 802.11n Dual Radio Access Point Series is the first three spatial stream 802.11n access point product in the industry to deliver near gigabit client access for enhanced voice and rich media applications.
Improved Coverage and Reliability
• The HP MSM 802.11n Dual Radio Access Point Series optimizes WLAN coverage and reliability with Wi-Fi Clear Connect automatic power adjustment, real-time identification of interference, and intelligent channel switching.
Comprehensive Security
• The HP MSM 802.11n Dual Radio Access Point Series provides comprehensive threat protection with integrated IDS offering granular threat detection and location tacking capabilities.
Investment Protection
• The HP MSM 802.11n Dual Radio Access Point Series provides indoor 802.11n Dual Radio indoor access points delivers industry leading Lifetime Warranty 2.0 and 3 year 24x7 phone support.
Security
• Integrated IDS support: Automated AP and client classification: reduces manual effort (administrator can override AP classification). Comprehensive detection capabilities: detects a wide range of attacks. Flexible event reporting: enables configuration of which events will result in notifications. Location tracking capabilities: helps identify the rogue device location. Flexible deployment models: supports time slicing or dedicating a radio to detect full-time. - see the controller datasheet.
Kenmerken
Maximale overdrachtssnelheid van gegevens
1000 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2.4, 5 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.3af
Bekabelingstechnologie
10/100/1000Base-T(X)
Quality of Service (QoS)
Ja
Beveiliging
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, EAP, EAP-TLS, EAP-TTLS, MD5, SSL/TLS, WPA, WPA-AES, WPA-TKIP, WPA2
Protocollen
Beheerprotocollen
SNMPv2c, SNMPv3, MIB-II
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
1
Energie
Power over Ethernet (PoE)
Ja
Stroomverbruik (typisch)
12,9 W
Antenne
Antennefuncties
Ingebouwde antenne
Antenne versterkingsniveau (max)
7 dBi
Certificaten
Certificering
FCC, RSS-210, EN, ARIB STD-T66, IDA, MIC, RCR STD-33, ARIB STD-T71
Gewicht en omvang
Afmetingen (B x D x H)
156,4 x 131,7 x 49,4 mm
Overige specificaties
Veiligheid
UL, IEC, EN, CAN/CSA
Netwerkfuncties
Gigabit Ethernet
Eisen aan de omgeving
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
5 - 95 procent
