General

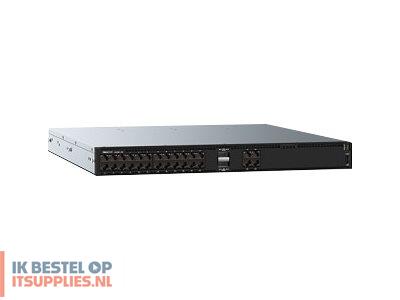

Device Type
Switch - 28 ports - L3 - Managed
Bundled Services
1 year Return to Depot
Enclosure Type
Front to back airflow rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
28 x 10GBase-T + 2 x 100 Gigabit QSFP28
Performance
Switching capacity: 960 Gbps ¦ Throughput: 720 Mpps
Capacity
ARP entries: 200000 ¦ IPv4 routes: 200000 ¦ IPv6 routes: 64000 ¦ IPv6 hosts: 130000 ¦ Multicast hosts: 8000 ¦ Links per group: 32 ¦ Link aggregation groups: 128 ¦ Layer 2 VLANs: 4000 ¦ MSTP instances: 32 ¦ ACL entries (ingress): 6000 ¦ ACL entries (egress): 1000
MAC Address Table Size
272000 entries
Routing Protocol
OSPF, BGP-4, OSPFv2, policy-based routing (PBR)
Remote Management Protocol
SNMP 1, SNMP 2
Authentication Method
RADIUS, TACACS
Features
Flow control, ARP support, port mirroring, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), LACP support, LLDP support, Dynamic VLAN Support (GVRP), Priority-Based Flow Control (PFC), Internet Control Message Protocol (ICMP), DNS client
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bj
Expansion / Connectivity
Interfaces
28 x 10Gbit LAN RJ-45 ¦ 2 x 100Gbit LAN QSFP28 ¦ 1 x serial (RS-232) RJ-45 management ¦ 1 x 10/100/1000 Base-T RJ-45 management
Power
Power Device
External power adapter - hot-plug
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
300 Watt
Miscellaneous
Compliant Standards
EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60825-1, EN 60825-2, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, EN 300 386 V1.4.1, FDA 21CFR1040.10, FDA 21CFR1040.11, AS/NZS CISPR 32 Class A, VCCI V-3/2009 Class A, CSA 60950-1 Second Edition, EN 55032:2015+A1:2007, FCC CFR47 Part 15 B 2009 Class A, EN 55024:1998+A1:2001+A2:2003
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 85% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
65 °C
Humidity Range Storage
5 - 95% (non-condensing)
