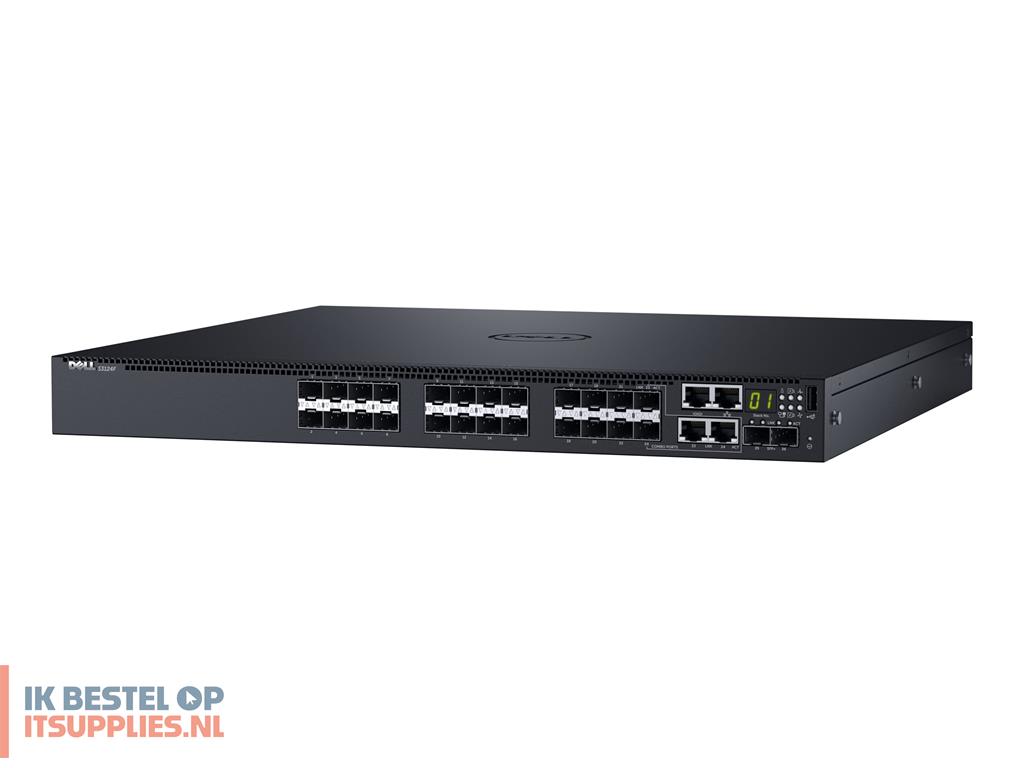

Dell Networking S3124F - Switch

Productcode: 210-AIMS | EAN/UPC: 5397184219683

€ 1.758,90 excl.btw

Dell Networking S3124F - Switch - L3 - Managed - 24 x Gigabit SFP + 2 x 10 Gigabit SFP+ + 2 x combo Gigabit SFP - front to back airflow - rack-mountable - Dell Smart Value - with 3 Years Dell ProSupport

Hot swappable expansion module supporting dual-port SFP+ or dual-port 10GBaseT
Integrated stacking ports with support up to 84 Gbps
Up to 624 ports in a 12-unit stack for high-density, high-availability aggregation and distribution in wiring closets/ MDFs
Non-stop forwarding and fast failover in stack configurations
Energy-efficient Ethernet and lower-power PHYs reduce power to inactive ports and idle links, providing energy savings from the power cord to the port
Dell Fresh Air compliance for operation in environments up to 113°F (45°C) helps reduce cooling costs in temperature constrained deployments

Op voorraad: 2 stuk(s)

Levertijd:

Product:
Dell Networking S3124F - Switch

€ 2128,27 incl. 21% btw € 1758,90excl. 21% btw

Winkelwagen Offerte

Omschrijving

Product features

Modernize campus network architectures
Modernize campus network architectures with a power-efficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE+). S3100 models deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, S3100 series switches offer the open-standard protocols and include technology to interface with Cisco protocol PVST+. The S3100 series supports Dell Networking OS9, VLT and network virtualization features such as VRF-lite and support for Dell Embedded Open Automation Framework.
Leverage familiar tools and practices
All S3100 switches include Dell Networking OS9 for easier deployment and greater interoperability. One common command line interface (CLI) using a well-known command language means a faster learning curve for network administrators.
Deploy with confidence at any scale
S3100 series switches help create performance assurance with a data rate up to 260 Gbps and a forwarding rate up to 193 Mpps. Scale easily with built-in rear stacking ports. Switch stacks of up to 624 ports can be managed from a single screen using the highly-available stacking architecture for high-density aggregation with seamless redundant availability.

Specificaties

General

Device Type

Switch - 24 ports - L3 - Managed - stackable

Bundled Services

3 Years Dell ProSupport

Enclosure Type

Front to back airflow rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x Gigabit SFP + 2 x 10 Gigabit SFP+ + 2 x combo Gigabit SFP

Performance

Switching fabric bandwidth: 212 Gbps
Forwarding performance: 158 Mpps

Capacity

MAC addresses: 32000
IPv4 routes: 1024
IPv6 routes: 1024
IPv4 routes (dynamic): 8160
IPv6 routes (dynamic): 4096
Links per group: 16
Priority queues per port: 8
Layer 2 VLANs: 4000
MSTP instances: 64
VRF-lite instances: 64
Host table entries (IPv4): 40000
Host table entries (IPv6): 8000
Multicast table entries (IPv4): 8000

MAC Address Table Size

32K entries

Routing Protocol

VRRP, OSPFv2, IGMPv3, MSDP

Remote Management Protocol

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3

Authentication Method

RADIUS

Features

MDI/MDI-X switch, port mirroring

Compliant Standards

IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP)

RAM

2 GB

Expansion / Connectivity

Interfaces

24 x Gigabit LAN SFP
2 x 10Gbit LAN SFP+
1 x serial (RS-232) RJ-45 management
1 x USB Type A
2 x Gigabit LAN RJ-45/SFP

Power

Power Device

Internal power supply - hot-plug

Installed Qty

1 (installed) / 2 (max)

Power Redundancy

Optional

Power Redundancy Scheme

1+1 (with optional power supply)

Power Provided

200 Watt

Miscellaneous

Compliant Standards

EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC CFR47 Part 15 B, EN 60825-1, ISO 7779, VCCI V-3, EN 60825-2, ICES-003 issue 4 Class A, EN 55024-2:1998+A1:2001+A2:2003, EN 300 386 V1.4.1, AS/NZS CISPR22:2006 Class A, IEC/UL/CSA/EN 60950-1, EN 55022:2006+A1:2007

Manufacturer Selling Program

Dell Smart Value

Dimensions & Weight

Width

43.4 cm

Depth

40.7 cm

Height

4.35 cm

Weight

6 kg

Manufacturer Warranty

Service & Support

Limited warranty - 3 years - response time: next business day

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Min Storage Temperature

-40 °C

Max Storage Temperature

65 °C

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
