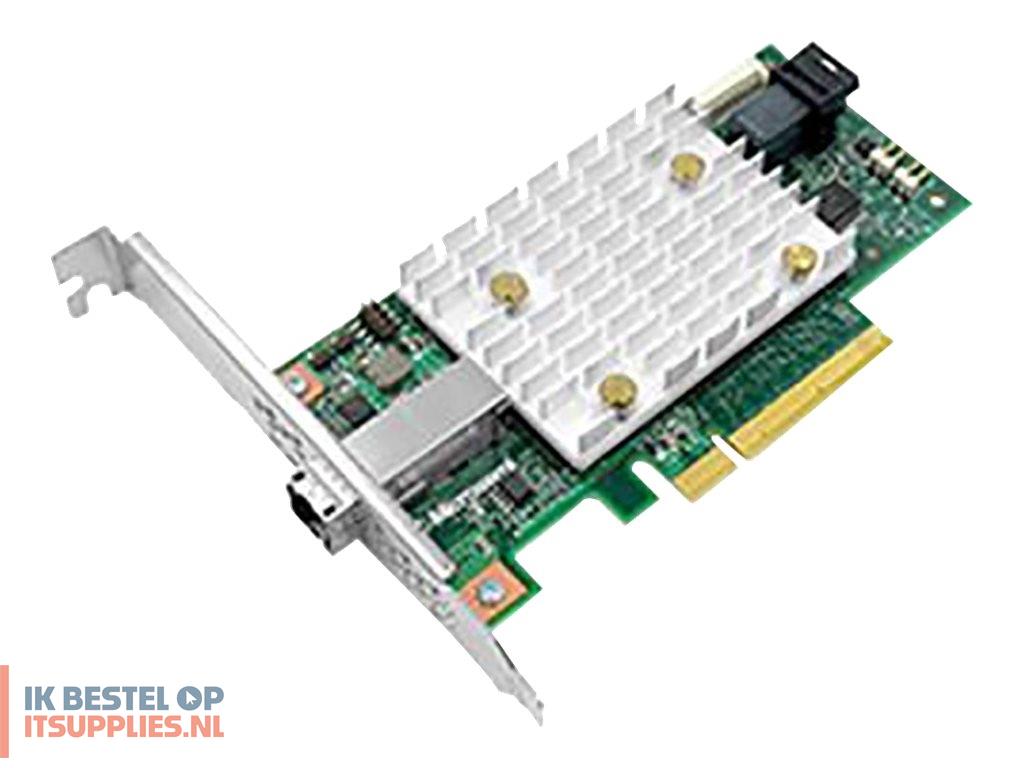

HP MicroSemi SmartHBA2100-4i4e - Storage controller (RAID)

Productcode: 1FV90AA | EAN/UPC: 0190781324072

€ 388,05 excl.btw

MicroSemi SmartHBA2100-4i4e - Storage controller (RAID) - 8 Channel - SATA 6Gb/s / SAS 12Gb/s - low profile - RAID RAID 0, 1, 5, 10 - PCIe 3.0 x8 - for Workstation Z4 G4, Z6 G4, Z8 G4

Op voorraad: 0 stuk(s)

Levertijd:

Product:
HP MicroSemi SmartHBA2100-4i4e - Storage controller (RAID)

€ 469,54 incl. 21% btw € 388,05excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

MicroSemi SmartHBA2100-4i4e - Storage controller (RAID) - 8 Channel - SATA 6Gb/s / SAS 12Gb/s - low profile - RAID RAID 0, 1, 5, 10 - PCIe 3.0 x8 - for Workstation Z4 G4, Z6 G4, Z8 G4

Specificaties

General

Device Type

Storage controller (RAID) - plug-in card - low profile

Host Bus

PCIe 3.0 x8

Storage Controller

Interface

SATA 6Gb/s / SAS 12Gb/s

Data Transfer Rate

12 Gbit/s

Supported Devices

Hard drive, tape drive, disk array (RAID), solid state drive

Channel Qty

Max Storage Devices Qty

256

RAID Level

RAID 0, RAID 1, RAID 5, RAID 10

Expansion / Connectivity

Interfaces

1 x SATA 6Gb/s / SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)
1 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) (external)

Miscellaneous

Included Accessories

Low-profile bracket

Features

Native Command Queuing (NCQ), SCSI Enclosure Services 2 (SES2), S.M.A.R.T. support, SCSI Enclosure Services 3 (SES3)

MTBF

1,400,000 hours

Compliant Standards

UL, VCCI, C-Tick, FCC, RoHS, KCC

Software / System Requirements

OS Required

SunSoft Solaris, FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight

Depth

16.7 cm

Height

6.4 cm

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

55 °C

Compatibility Information

Designed For

HP Workstation Z4 G4, Z6 G4, Z8 G4

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
