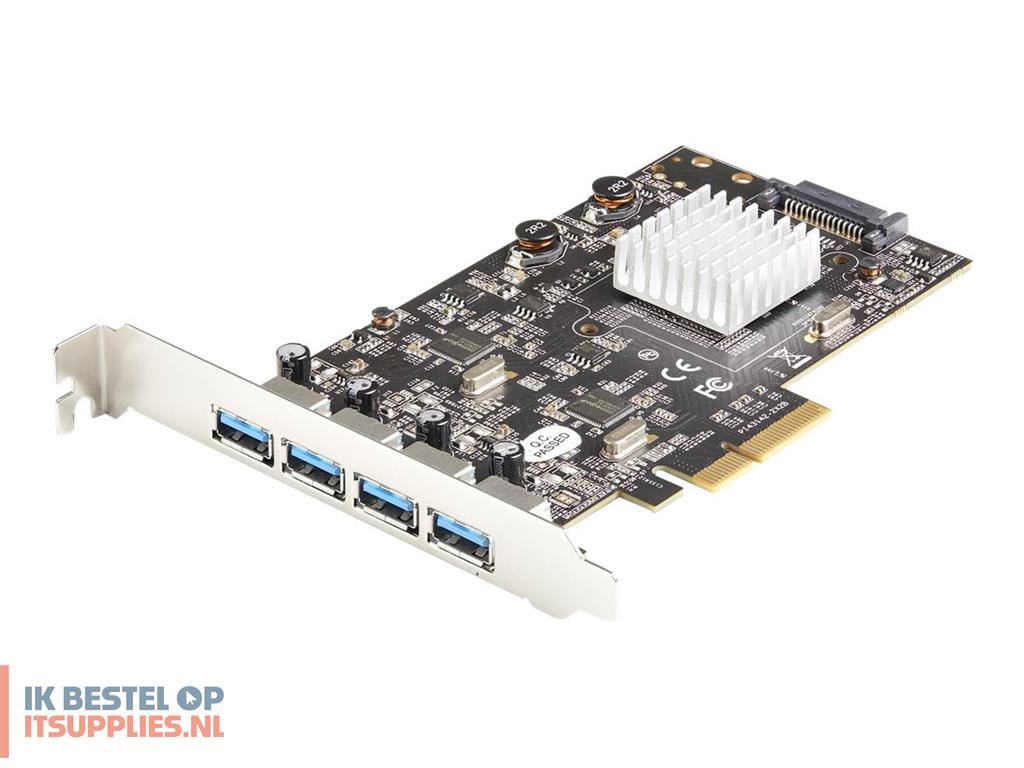

StarTech.com 4-Port USB PCIe Card

Productcode: PEXUSB314A2V2 | EAN/UPC: 0065030887410

€ 133,86 excl.btw

StarTech.com 4-Port USB PCIe Card - 10Gbps USB 3.1/3.2 Gen 2 Type-A PCI Express Expansion Card - 2 Controllers - 4xUSB - Windows/Mac/Linux - USB adapter - PCIe 3.0 x4 - USB 3.1 Gen 2 x 4

USB PCIe card with 4x USB-A ports up to SuperSpeed 10Gbps per port, dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports, USB 3.1 Gen 2/USB 3.2 Gen 2x1
Multiple INs support for max bandwidth when using mixed-speed devices, USB Attached SCSI Protocol (UASP) for storage device, like SSDs, HDDs, NVMe drives and thumb drives
USB PCI Express expansion card with SATA power header has the option to provide supplemental power to the USB ports providing up to 4.5W (5V@0.9A) per USB-A port

Op voorraad: 17 stuk(s)

Levertijd:

Product:
StarTech.com 4-Port USB PCIe Card

€ 161,97 incl. 21% btw € 133,86excl. 21% btw

Winkelwagen Offerte

Omschrijving

StarTech.com 4-Port USB PCIe Card - 10Gbps USB 3.1/3.2 Gen 2 Type-A PCI Express Expansion Card - 2 Controllers - 4xUSB - Windows/Mac/Linux - USB adapter - PCIe 3.0 x4 - USB 3.1 Gen 2 x 4

Product features

Add four 10 Gbps USB Type-A ports to your desktop computer
The controller card enables you to connect four USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.
SuperSpeed USB 3.2 Gen 2 (10 Gbps) performance
The USB 3.2 Gen 2 card features dual ASMedia ASM3142 host controllers that utilizes x4 lanes of the PCIe 2.0 bus, making the card capable of speeds up to 10 Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller cards support Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub. The card also supports UASP for improved performance with storage devices.
Wide installation compatibility
This add-on card includes a full-profile installation bracket ensuring you can install it into full-profile PCIe 2.0 x4 slots. For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works with USB 3.1/3.0/2.0 devices

Specificaties

General

Device Type

USB adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express 3.0 x4

PCI Specification Revision

PCIe 3.0

Networking

Ports

USB 3.1 Gen 2 x 4

Connectivity Technology

Wired

Data Link Protocol

USB 3.1 Gen 2

Data Transfer Rate

10 Gbps

Features

UASP

Compliant Standards

USB 3.1, xHCI 1.1

Processor / Memory

Processor

ASMedia ASM1142

Expansion / Connectivity

Interfaces

4 x USB 3.1 Gen 2 - 9 pin USB Type A
1 x SATA 3Gb/s - 15 pin Serial ATA power
1 - 4 PIN internal power

Miscellaneous

Compliant Standards

FCC, RoHS, WEEE

Software / System Requirements

OS Required

Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux LTS versions only, Linux 3.5 or later, Apple macOS 10.13 - 10.15, Apple macOS 11.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0

Dimensions & Weight

Width

2 cm

Depth

12.5 cm

Height

8.5 cm

Weight

79 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

-20 °C

Max Operating Temperature

60 °C

Humidity Range Operating

5 - 85% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Manufacturer's data sheet
