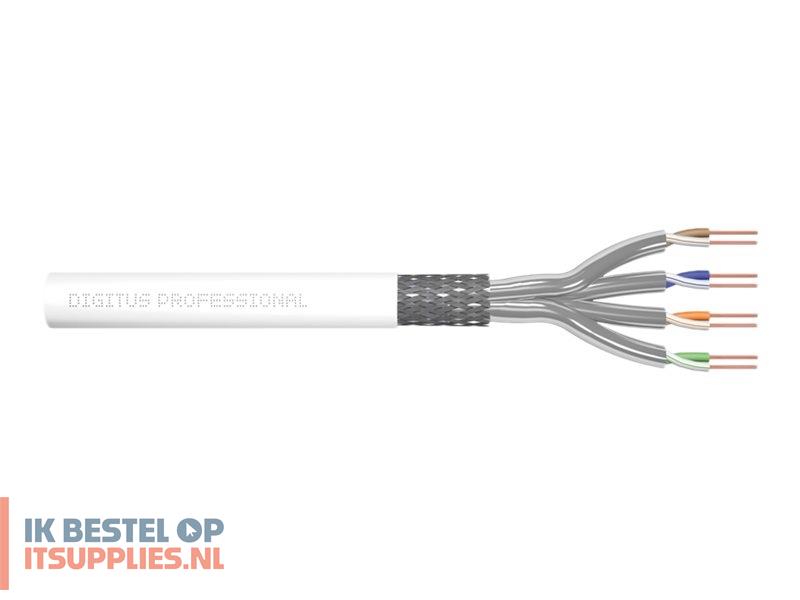

DIGITUS Professional - Bulk cable - 305 m - SFTP - CAT 7 - halogen-free, solid - white, RAL 9003
Product features
· Physical properties:
· Conductor: Bare copper wire, AWG 26/1
· Insulation: SFS-PE (foamed polyethylene jacket)
· Total number of insulated conductors: 8, twisted into 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100%
· Overall shielding: copper braiding
· Outer sheath: Dca acc. to EN 50575; LSZH
· Outer sheath thickness (nominal): 0.52 mm nominal
· Outer casing color: White (RAL 9003)
· Mechanical properties:
· Strain relief: 150N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Transport and storage temperature range: -20 °C to +60 °C
· Operating temperature range: -20 °C to +50 °C
· Installation temperature range: 0 °C to +50 °C
· Outer diameter simplex (nominal): 5.7 mm nominal
· Weight (kg/km): 35 kg/km
· Electrical properties:
· Impedance: 100±15Ohm @ 4 - 100MHz; 100±25Ohm @ 100 - 600MHz
· Capacitance: 45 pF/m nominal @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
· Loop resistance: 190 Ohm/Km max. (2% max. unbalanced resistance)
· Operating voltage: 72 Vdc max.
· Coupling attenuation: CA-Type 1b
· Phase delay: 450 nS/100 m max.
· Time delay: 25 nS/100 m max.
· Separation class: "d" according to EN 50174-2
· Maximum insert length: 60 m
· NVP: 79%
· Flame spread: EN EN 60332-1-2 (LSOH-PVC)
· Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
· Smoke density EN 61034-2
