General
Device Type

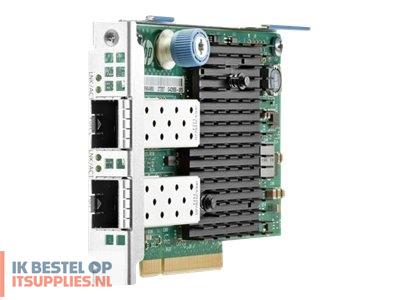

Network adapter
Interface (Bus) Type
PCI Express 3.0 x8
Networking
Connectivity Technology
Wired
Data Link Protocol
10 Gigabit Ethernet
Data Transfer Rate
10 Gbps
Capacity
Jumbo frame size: 9.5 KB
Status Indicators
Status, link/activity
Compliant Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qau
Processor / Memory
Expansion / Connectivity
Interfaces
2 x 10Gb Ethernet - SFP+
Miscellaneous
Compliant Standards
UL, BSMI, RoHS, FCC Part 15 A, VCCI V-3, AS/NZS, EN 61000-3-2:2006, EN 61000-3-3:2008, KN24, KN22 Class A, EN55024:1998 + A1 + A2, ICES-003 issue 4, EN 55022:2006+A1:2007 Class A, EN55022:2006 + A1:2007 Class A, CNS 13438 Class A
Software / System Requirements
OS Required
SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Red Hat Enterprise Linux 6, Red Hat Enterprise Linux 5.x, Oracle Solaris 10, VMware ESX 4.1, VMware ESXi 4.1, Microsoft Windows Server 2012
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 - 90% (non-condensing)
Compatibility Information
Designed For
HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4200 Gen10 for HPE Ezmeral Container Platform, 4200 Gen10 for HPE Ezmeral Tracking, 4200 Gen9 for Google
HPE Edgeline e920, e920d
HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10
HPE ProLiant DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10 for SAP HANA Compute Block, DX380 Gen10, DX560 Gen10, ML30 Gen10, ML30 Gen10 Entry, ML30 Gen10 Performance, ML30 Gen10 Solution, ML350 Gen10 High Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, XL270d Gen10 for HPE Ezmeral Container Platform, XL450 Gen10 200TB Server for Cohesity DataPlatform, XL450 Gen10 400TB Server for Cohesity DataPlatform, XL450 Gen10 700TB Server for Cohesity DataPlatform
HPE StoreEasy 1660 Expanded Storage
