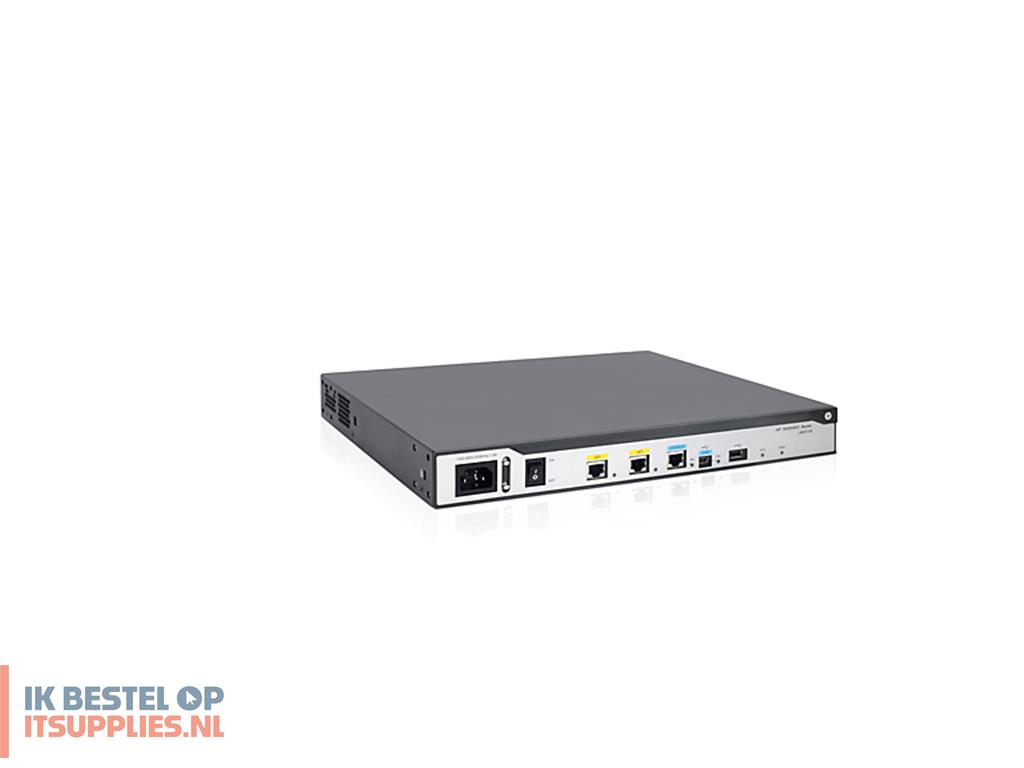

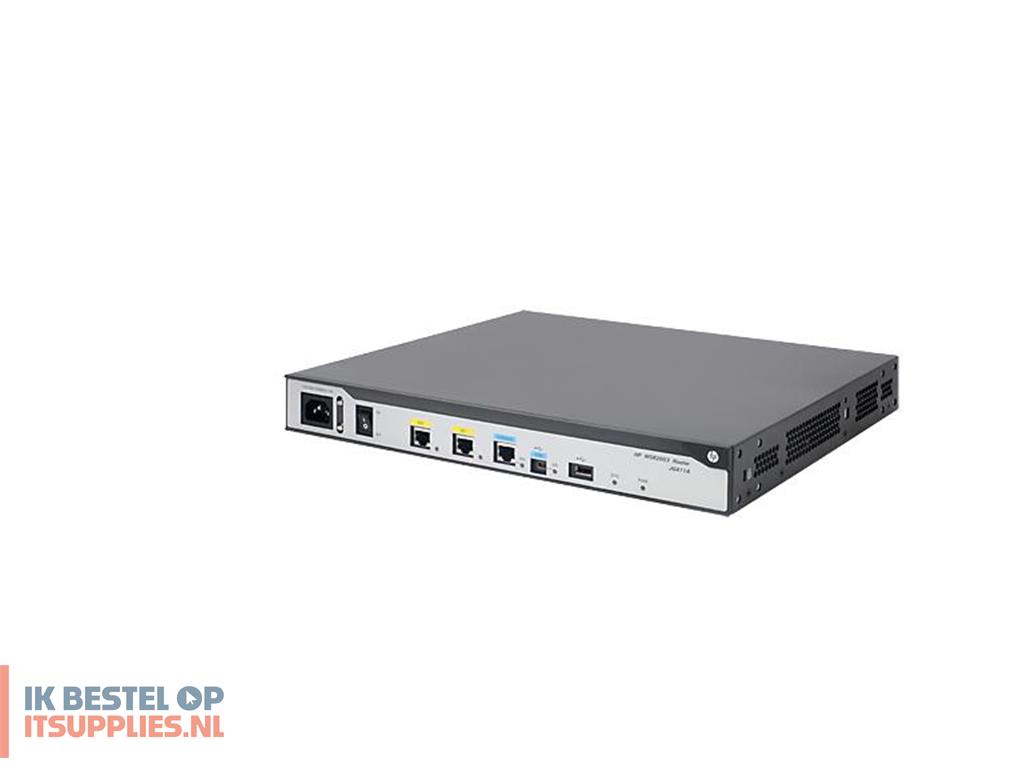

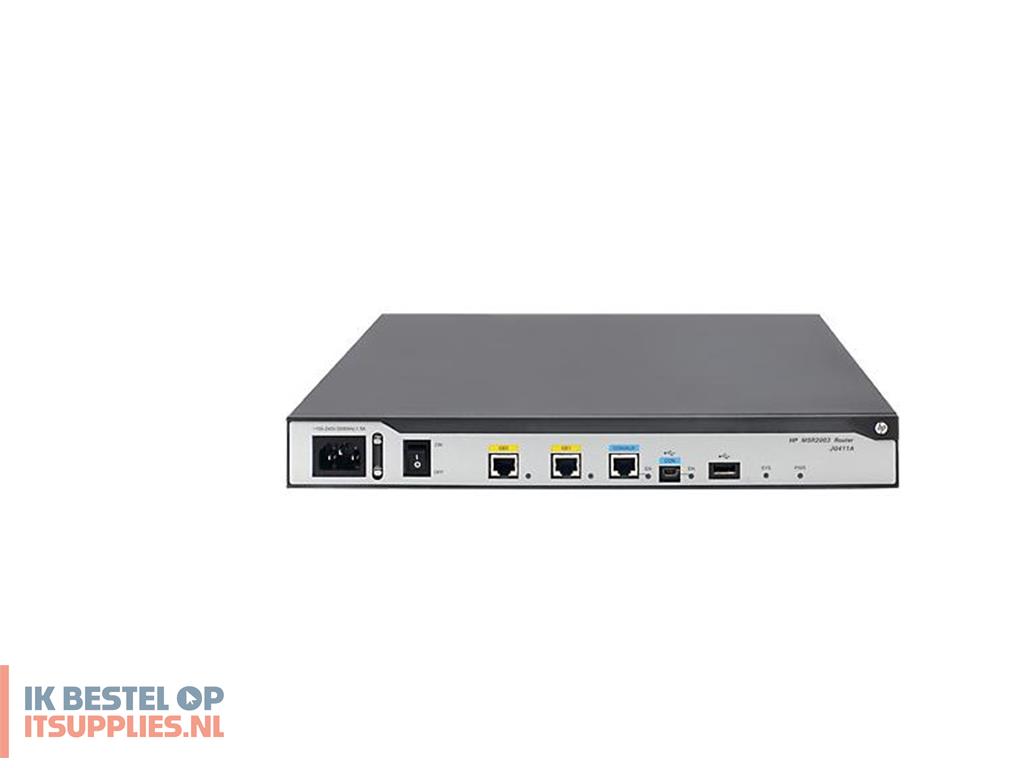

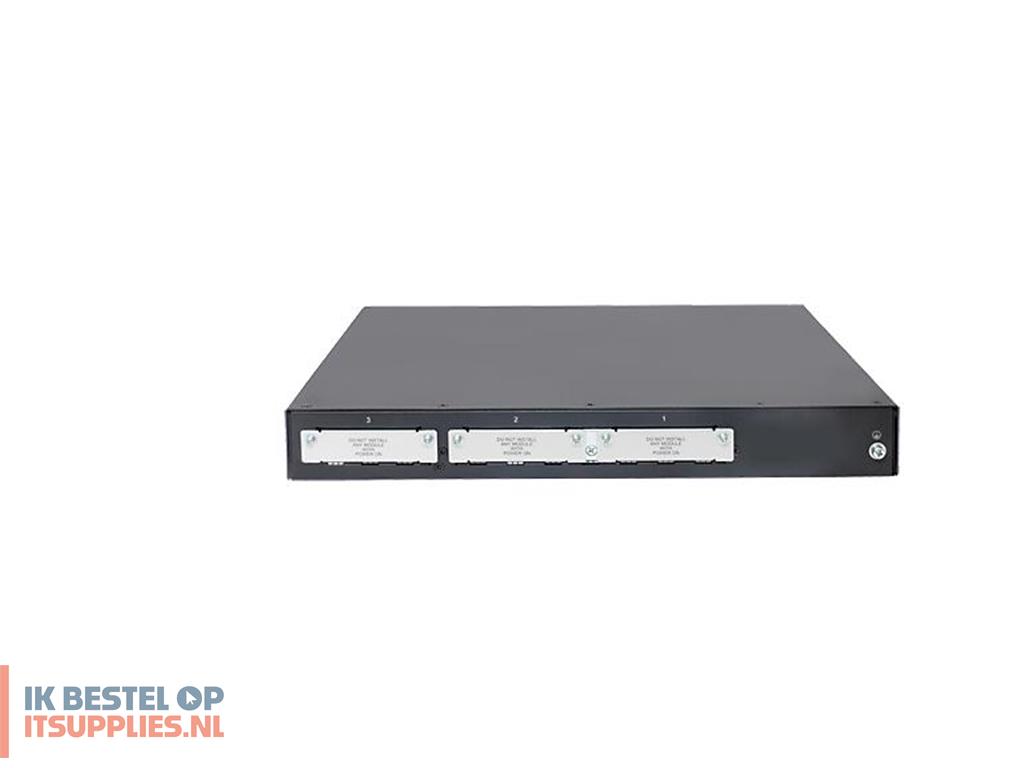

The HP MSR2000 router series is a second generation HP Multi-Service Router (MSR G2) that supports HP FlexBranch solution as part HP's overall comprehensive HP FlexNetwork architecture. The HP MSR2000 router series features a modular design that delivers unmatched application services for small to medium sized branch offices while reducing complexity, simplifying configuration, deployment and management. The MSR2000 router series provides a full-featured, resilient routing platform, including IPv6 and MPLS, up to 1 Mpps forwarding capacity and 400 Mbps of IPsec VPN encrypted throughput. The MSR2000 router multi-core processors ensures high performance and reliable routing, switching, SIP/voice, 3G/4G WAN and security services all in one device.
Performance
• Excellent forwarding performance: provides forwarding performance up to 1 Mpps (672 Mbps); meets the bandwidth-intensive application demands of enterprise businesses
Product architecture
• Ideal multi-service platform: provides WAN router, Ethernet switch, wireless LAN, 3G/4G WAN, firewall, VPN, and SIP/voice gateway all in one device
Connectivity
• High-density port connectivity: provides up to three interface module slots and up to 15 fast Ethernet ports
Layer 2 switching
• Spanning Tree Protocol (STP): supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Layer 3 routing
• Static IPv4 routing: provides simple, manually configured IPv4 routing
Layer 3 services
• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
Quality of Service (QoS)
• Nested QoS: provides a built-in QoS engine that supports nested QoS (Same to hierarchical QoS) and can implement a hierarchical scheduling mechanism based on ports, user groups, users, and user services.
Netwerk
Netwerkstandaard
IEEE 802.3ab
Ethernet interface type
Gigabit Ethernet
Bekabelingstechnologie
10/100/1000Base-T(X)
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
2
Aantal USB-aansluitingen
1
Kenmerken
Frequentie van processor
800 MHz
Design
Kleur van het product
Zwart
Energie
Stroomverbruik (typisch)
54 W
AC-ingangsspanning
200 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Hoogte, in bedrijf
0 - 5000 m
