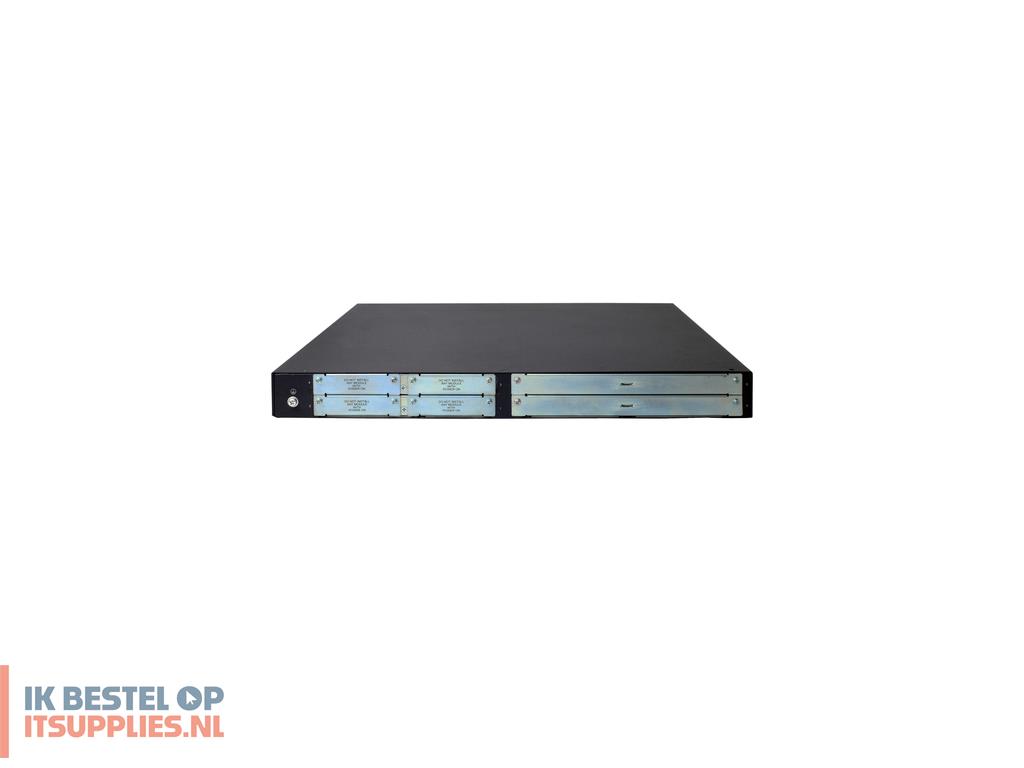

The HP MSR3000 Router Series is a family of high-performance medium to large branch routers that deliver integrated routing, switching, security, and SIP in a single box. With its integrated infrastructure and modular design, the MSR3000 reduces complexity and simplifies your network while enabling faster time to service and enhanced performance.
The MSR3000 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. It offers lasting investment protection, and helps reduce capital and operating expenses.
Netwerk
Netwerkstandaard
IEEE 802.3ab
Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Verzending snelheid
2,6 Mpps
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
3
Aantal Smart Interface Card (SIC)-sleuven
4
Beveiliging
MAC-adrestabel
500000 entries
Kenmerken
Frequentie van processor
1000 MHz
Warmtedissipatie
168 BTU/h
Mean time between failures (MTBF)
8760 uur
Veiligheid
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1
Design
Kleur van het product
Zwart
Energie
Vermogensverbruik (max)
100 W
AC-ingangsspanning
220 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
