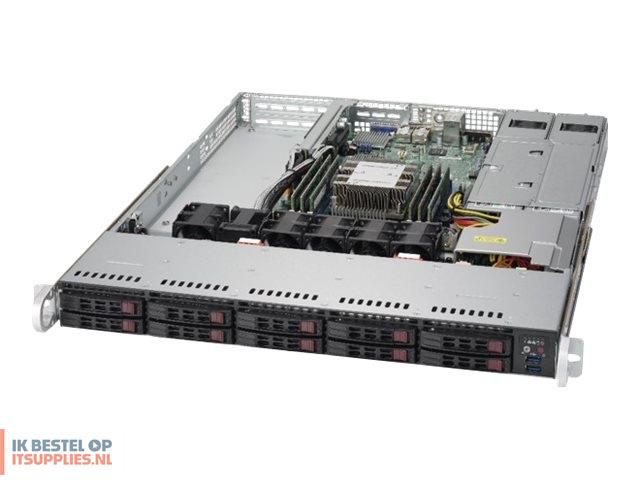

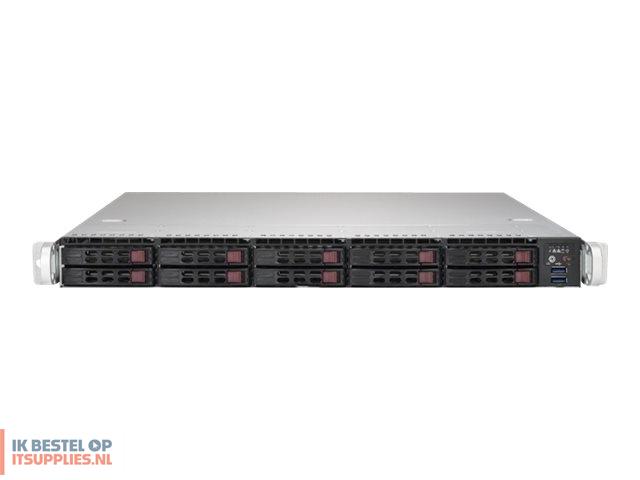

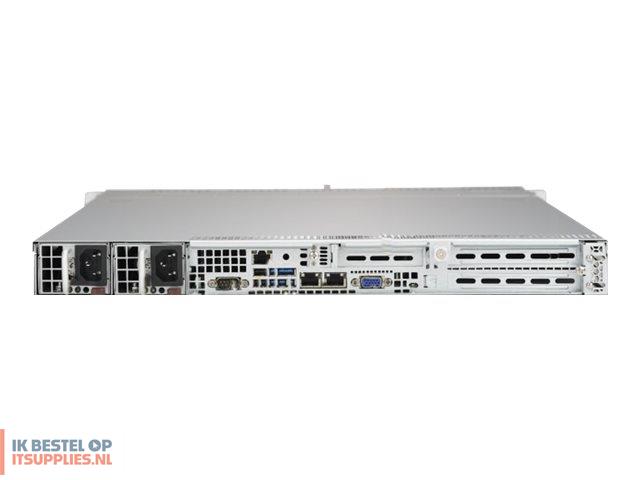

Supermicro SuperServer 1019P-WTR

Productcode: SYS-1019P-WTR | EAN/UPC: 0672042263783

€ 1.361,50 excl.btw

Supermicro SuperServer 1019P-WTR - Server - rack-mountable - 1U - 1-way - no CPU - RAM 0 GB - SATA - hot-swap 2.5" bay(s) - no HDD - AST2500 - GigE, 10 GigE - monitor: none

6 hot-swap 2.5" SAS/SATA drive bays
Dual M.2 Mini-PCIe support 2280
8 heavy duty 4 cm counter-rotating 4 cm fans with air shroud & optimal fan speed control
1400W high-efficiency power supply

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Supermicro SuperServer 1019P-WTR

€ 1647,42 incl. 21% btw € 1361,50excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Supermicro SuperServer 1019P-WTR - Server - rack-mountable - 1U - 1-way - no CPU - RAM 0 GB - SATA - hot-swap 2.5" bay(s) - no HDD - AST2500 - GigE, 10 GigE - monitor: none

Specificaties

General

Type

Server

Product Form Factor

Rack-mountable - 1U

Server Scalability

1-way

Hot-Swap Bays Qty

Colour

Black

Processor / Chipset

CPU

No CPU

Max CPU Qty

CPU Upgradability

Upgradable

CPU Socket

Socket P

Chipset Type

Intel C622

RAM

Installed Size

0 GB / 768 GB (max)

Technology

DDR4 SDRAM - ECC

Form Factor

DIMM 288-pin

Slots

6 (Total) / 6 (empty)

Features

Registered, 3DS Load-Reduced DIMM (LRDIMM)

RAM Supported

768 GB 3DS Load-Reduced - ECC
192 GB registered - ECC

Hard Drive

Type

No HDD

Storage Controller

Type

1 x SATA

Controller Interface Type

SATA 6Gb/s

Channel Qty

RAID Level

RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage

Type

No optical drive

Monitor

Monitor Type

None.

Graphics Controller

Graphics Processor

ASPEED AST2500

Video Interfaces

VGA

Networking

Ethernet Ports

2 x 10 Gigabit Ethernet

Ethernet Controller

Intel X772, X557

Data Link Protocol

Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet

Remote Management Protocol

IPMI 2.0

Features

KVM over IP support

Expansion / Connectivity

Bays

10 (total) / 10 (free) x hot-swap 2.5"

Slots

1 (total) / 1 (free) x CPU
6 (total) / 6 (free) x DIMM 288-pin
2 (total) / 2 (free) x PCIe 3.0 x16 - full-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile
1 (total) / 1 (free) x M.2 Card

Interfaces

2 x LAN (10Gigabit Ethernet)
1 x management - RJ-45
2 x USB 3.0
1 x VGA
1 x serial
2 x USB 2.0

Miscellaneous

Included Accessories

CPU Heatsink, 2 x riser cards

Cables Included

SGPIO cable
Serial ATA cable (2 pcs.)
Cross-over mini SAS HD to 4 x SATA HDD cable
Mini SAS to mini SAS HD cable

Compliant Standards

RoHS

Power

Device Type

Power supply

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Installed Qty

Max Supported Qty

Nominal Voltage

AC 120/230 V (50 - 60 Hz)

Power Provided

500 Watt

80 PLUS Certification

80 PLUS Platinum

Manufacturer Warranty

Service & Support

Limited warranty - parts - 1 year
Limited warranty - labour - 3 years

Dimensions & Weight

Width

43.7 cm

Depth

59.7 cm

Height

4.3 cm

Weight

7.03 kg

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

35 °C

Humidity Range Operating

8 - 90% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
