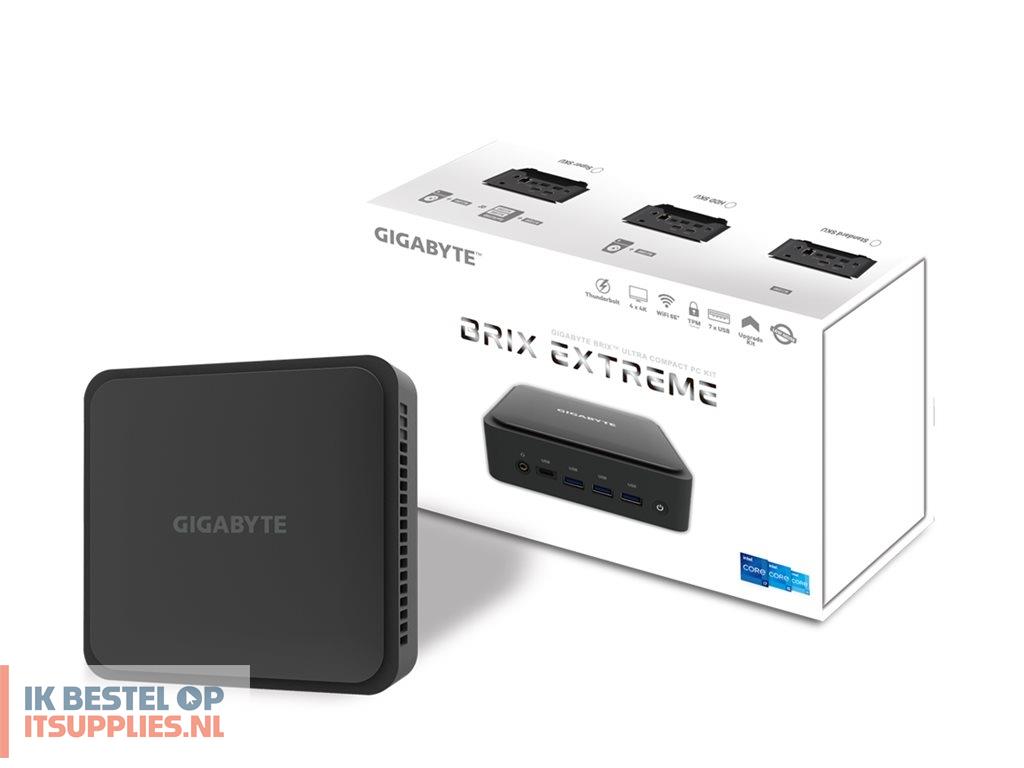

Gigabyte BRIX Extreme GB-BEi3H-1220 (rev. 1.0)

Productcode: GB-BEI3H-1220 | EAN/UPC: 4719331601768

€ 286,38 excl.btw

Gigabyte BRIX Extreme GB-BEi3H-1220 (rev. 1.0) - Barebone - mini PC 1 x Core i3 1220P / up to 4.4 GHz - RAM 0 GB - UHD Graphics - IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2, Gigabit Ethernet, 2.5 Gigabit Ethernet

Op voorraad: 14 stuk(s)

Levertijd:

Product:
Gigabyte BRIX Extreme GB-BEi3H-1220 (rev. 1.0)

€ 346,52 incl. 21% btw € 286,38excl. 21% btw

Winkelwagen Offerte

Omschrijving

Specificaties

General

Type

PC barebone

Product Form Factor

Mini PC

Embedded Security

Trusted Platform Module (TPM 2.0) Security Chip

Processor / Chipset

CPU

Intel Core i3 (12th Gen) 1220P

Clock Speed

1.5 GHz

Max Turbo Speed

4.4 GHz (P-core) / 3.3 GHz (E-core)

Number of Cores

10-core

CPU Qty

Max CPU Qty

Processor Main Features

Intel Smart Cache

Cache Memory

Installed Size

12 MB

Cache Per Processor

12 MB

RAM

Installed Size

0 GB (installed) / 64 GB (max)

Technology

DDR4 SDRAM

Effective Memory Speed

3200 MHz

Rated Memory Speed

3200 MHz

Form Factor

SO-DIMM 260-pin

Slots

2 (Total) / 2 (empty)

Hard Drive

Type

No HDD

Optical Storage

Type

No optical drive

Monitor

Monitor Type

None.

Graphics Controller

Graphics Processor

Intel UHD Graphics

Video Interfaces

HDMI, DisplayPort, USB-C

Max Monitors Supported

Audio Output

Sound Output Mode

Stereo

Compliant Standards

High Definition Audio

Networking

Ethernet Controller

Intel I225-V

Wireless LAN Supported

Yes

Data Link Protocol

IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, Bluetooth 5.2, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet

Expansion / Connectivity

Bays

1 (total) / 1 (free) x internal 2.5"

Slots

1 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode)
1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module)

Interfaces

1 x USB-C 3.2 Gen 2 (1 front)
3 x USB 3.2 Gen 2 (3 in front)
1 x headphones/microphone - mini-jack (1 front)
2 x HDMI (2 rear)
1 x Mini DisplayPort (1 rear)
1 x Thunderbolt 4/USB4/DisplayPort (1 rear)
2 x USB 2.0 (2 rear)
1 x LAN (2.5Gigabit Ethernet) (1 rear)

Miscellaneous

Included Accessories

VESA bracket

Theft/Intrusion Protection

Security lock slot (cable lock sold separately)

Security Slot Type

Kensington security slot

Power

Device Type

Power adapter

Voltage Required

AC 100-240 V

Power Provided

135 Watt

Operating System / Software

OS Provided

No operating system

OS Certified

Windows 11, Windows 10

Dimensions & Weight

Width

13.42 cm

Depth

13.91 cm

Height

5.2 cm

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

35 °C

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Manufacturer's data sheet
