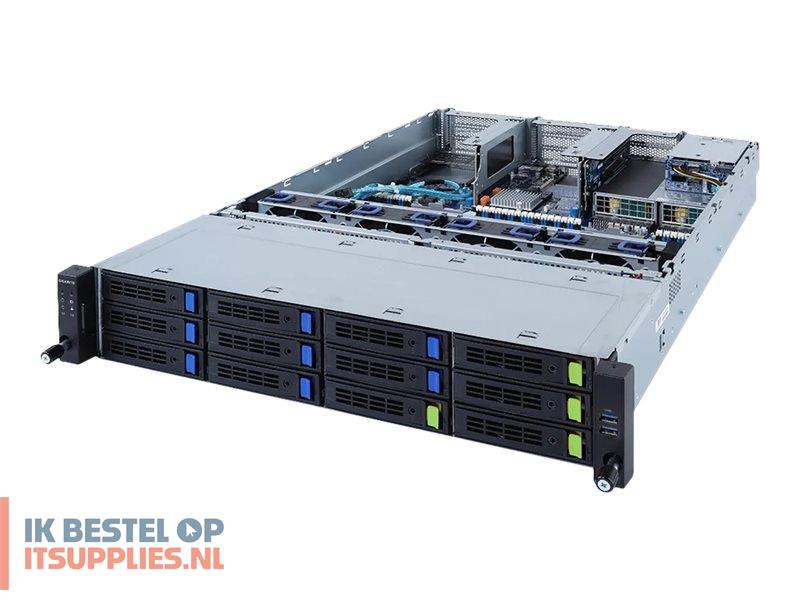

Gigabyte R282-3C1 (rev. 100) - Server

Productcode: 6NR2823C1MR-00 | EAN/UPC: 4719331600112

€ 3.331,44 excl.btw

Gigabyte R282-3C1 (rev. 100) - Server - rack-mountable - 2U - 2-way - no CPU up to - RAM 0 GB - SATA - hot-swap 2.5", 3.5" bay(s) - no HDD - AST2600 - Gigabit Ethernet - no OS - monitor: none

Enhanced I/0
CPU performance boost
Next level security
AI Acceleration
OCP 3.0 Ready
Easy serviceability
Improved thermal design
Automatic fan speed control
Cold redundancy
Dual ROM architecture
Optional TPM 2.0 module
Certified ready with Software Partners
Value-added management
GIGABYTE management console
GIGABYTE Server Management (GSM)

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Gigabyte R282-3C1 (rev. 100) - Server

€ 4031,04 incl. 21% btw € 3331,44excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Gigabyte R282-3C1 (rev. 100) - Server - rack-mountable - 2U - 2-way - no CPU up to - RAM 0 GB - SATA - hot-swap 2.5", 3.5" bay(s) - no HDD - AST2600 - Gigabit Ethernet - no OS - monitor: none

Product features

Enhanced I/0
Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.
CPU performance boost
Now up to 40 cores per socket with greatly improved IPC on Intel's 10nm architecture while operating CPUs at 105-270W. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs.
Next level security
New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added.
AI Acceleration
AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media & Graphics.
OCP 3.0 Ready
GIGABYTE offers servers that feature an onboard OCP 3.0 slot for the next generation of add on cards. Advantages of this new type include:
Easy serviceability
simply slot in or pull out the card, without opening the server or using tools.
Improved thermal design
horizontal position and optimal heat sink design allow for air cooling to eliminate the heat efficiently.
Automatic fan speed control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
Cold redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, and results of 10% improvement in efficiency.
Dual ROM architecture
If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.
Optional TPM 2.0 module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Certified ready with Software Partners
Being a member of key software alliance partner programs enables GIGABYTE to together rapidly develop and validate joint solutions, enabling its customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization. GIGABYTE servers have a compatibility across various ecosystems.
Value-added management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.
GIGABYTE management console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface.
GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards.

Specificaties

General

Type

Server

Product Form Factor

Rack-mountable - 2U

Server Scalability

2-way

Hot-Swap Bays Qty

Processor / Chipset

CPU

No CPU

Max CPU Qty

CPU Upgradability

Upgradable

CPU Socket

Socket P+

Chipset Type

Intel C621A

Motherboard Name

GIGABYTE MR92-FS1

RAM

Installed Size

0 GB

Technology

DDR4 SDRAM

Form Factor

DIMM 288-pin

Slots

32 (Total) / 32 (empty)

Features

Registered, Load-Reduced DIMM (LRDIMM), 8-channel memory architecture, 3DS Load-Reduced DIMM (LRDIMM), 3DS registered

Hard Drive

Type

No HDD

Storage Controller

Type

SATA

Optical Storage

Type

No optical drive

Monitor

Monitor Type

None.

Graphics Controller

Graphics Processor

ASPEED AST2600

Video Interfaces

VGA

Networking

Ethernet Ports

2 x Gigabit Ethernet

Ethernet Controller

Intel I350-AM2

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity

Bays

12 (total) / 12 (free) x hot-swap 2.5" / 3.5" shared
2 (total) / 2 (free) x hot-swap 2.5"

Slots

1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height
2 (total) / 2 (free) x PCIe 4.0 x8 - half-length, full-height
1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x16/x8 mode)
1 (total) / 1 (free) x PCIe 4.0 x8 - half-length, full-height (x0/x8 mode)
1 (total) / 1 (free) x PCIe 3.0 x16 / Open Compute Project mezzanine (OCP) 2.0 - half-length, full-height (x16/x8 mode)
2 (total) / 2 (free) x PCIe 4.0 x8 - half-length, low-profile
1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0
1 (total) / 1 (free) x PCIe 3.0 x8 / Open Compute Project mezzanine (OCP) 2.0

Interfaces

4 x USB 3.0 (2 front, 2 rear)
2 x LAN (Gigabit Ethernet) - RJ-45
1 x management (NIC) - RJ-45
1 x VGA

Miscellaneous

Included Accessories

2 x CPU Heatsink, rack rail kit

Power

Device Type

Power supply

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Installed Qty

Max Supported Qty

Voltage Required

AC 100 - 120 / 200 - 240 V / DC 240 V (50 - 60 Hz)

Power Provided

1600 Watt

80 PLUS Certification

80 PLUS Platinum

Operating System / Software

OS Provided

No operating system

Dimensions & Weight

Width

43.8 cm

Depth

73 cm

Height

8.75 cm

Dimensions & Weight (Shipping)

Shipping Width

98.2 cm

Shipping Depth

58.8 cm

Shipping Height

26.8 cm

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

35 °C

Humidity Range Operating

8 - 80% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
