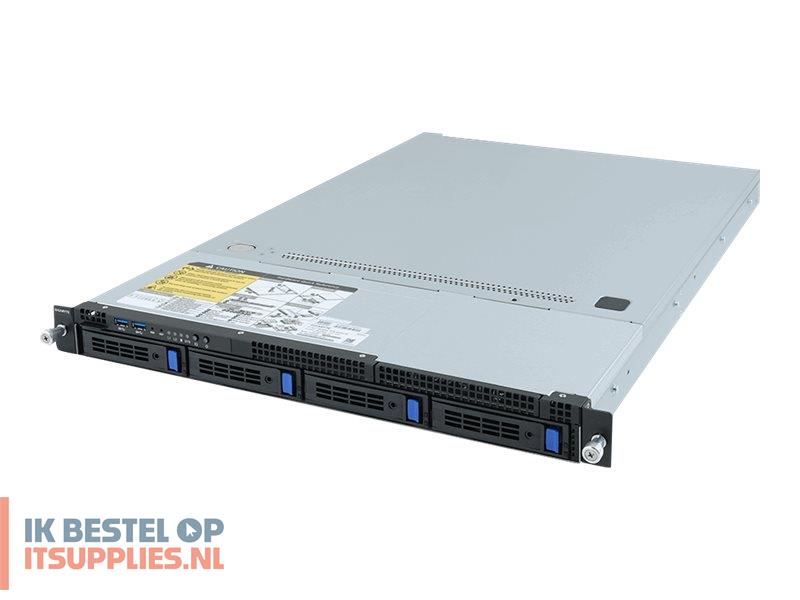

Gigabyte R182-Z90 (rev. 100) - Server

Productcode: 6NR182Z90MR-00 | EAN/UPC: 4719331191177

€ 2.224,63 excl.btw

Gigabyte R182-Z90 (rev. 100) - Server - rack-mountable - 1U - 2-way - no CPU up to - RAM 0 GB - SATA - hot-swap 2.5", 3.5" bay(s) - no HDD - AST2500 - Gigabit Ethernet - no OS - monitor: none

2x 1Gb/s LAN ports
1x dedicated management port
4x 3.5"/2.5" SATA hot-swappable HDD/SSD bays
Ultra-fast M.2 with PCIe Gen3 x4 interface
2x PCIe Gen4 x16 expansion slots

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Gigabyte R182-Z90 (rev. 100) - Server

€ 2691,80 incl. 21% btw € 2224,63excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

Gigabyte R182-Z90 (rev. 100) - Server - rack-mountable - 1U - 2-way - no CPU up to - RAM 0 GB - SATA - hot-swap 2.5", 3.5" bay(s) - no HDD - AST2500 - Gigabit Ethernet - no OS - monitor: none

Product features

Dynamic fan speed control
GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system's current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve excellent cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited when necessary according to the user's custom requirements.
Easier serviceability
Simply slot in / pull out the card without needing to open the server chassis; tool less design.
Larger thermal envelope
More space for heat sink provides an increased power budget for emerging capabilities.
Cold redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher loading, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with dual PSU. When the total system loading falls lower than 40%, the system will automatically place one PSU into standby mode, enabling the other PSU to take over the greater load. This can enable total system power efficiency savings of up to 10%.
SCMP
SCMP is a GIGABYTE feature that will automatically force the system's CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost.

Specificaties

General

Type

Server

Product Form Factor

Rack-mountable - 1U

Server Scalability

2-way

Front Accessible Bays Qty

Hot-Swap Bays Qty

Processor / Chipset

CPU

No CPU

Max CPU Qty

CPU Upgradability

Upgradable

CPU Socket

Socket SP3

RAM

Installed Size

0 GB

Technology

DDR4 SDRAM

Form Factor

DIMM 288-pin

Slots

32 (Total) / 32 (empty)

Features

Registered, Load-Reduced DIMM (LRDIMM), 8-channel memory architecture

Hard Drive

Type

No HDD

Storage Controller

Type

1 x SATA

Controller Interface Type

SATA 6Gb/s

Channel Qty

Optical Storage

Type

No optical drive

Monitor

Monitor Type

None.

Graphics Controller

Graphics Processor

ASPEED AST2500

Video Interfaces

VGA

Networking

Ethernet Ports

2 x Gigabit Ethernet

Ethernet Controller

Intel I350-AM2

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Controller

Aspeed AST2500

Expansion / Connectivity

Bays

4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared
1 (total) / 1 (free) x external 5.25" Slim Line

Slots

2 (total) / 2 (free) x PCIe 4.0 x16 - half-length, full-height
1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0
1 (total) / 1 (free) x PCIe 3.0 x16 / Open Compute Project mezzanine (OCP) 2.0
1 (total) / 1 (free) x M.2 Card - 2242/2260/2280/22110

Interfaces

4 x USB 3.0 (2 front, 2 rear)
1 x VGA
2 x LAN (Gigabit Ethernet)
1 x management (NIC) - RJ-45

Miscellaneous

Included Accessories

2 x CPU Heatsink, rack rail kit

Compliant Standards

RoHS

Power

Device Type

Power supply

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Installed Qty

Max Supported Qty

Voltage Required

AC 120/230 V (50 - 60 Hz)

Power Provided

1200 Watt

80 PLUS Certification

80 PLUS Platinum

Operating System / Software

OS Provided

No operating system

Dimensions & Weight

Width

43.8 cm

Depth

73 cm

Height

4.35 cm

Dimensions & Weight (Shipping)

Shipping Width

58.8 cm

Shipping Depth

98.5 cm

Shipping Height

25 cm

Environmental Parameters

Min Operating Temperature

10 °C

Max Operating Temperature

35 °C

Humidity Range Operating

8 - 80% (non-condensing)

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.
