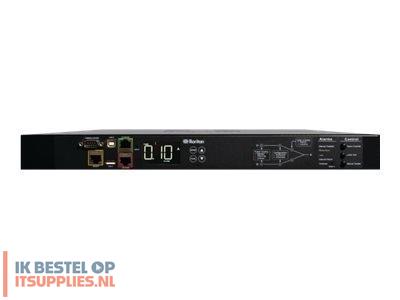

Raritan Intelligent Rack Transfer Switch PX3TS-5191CR

Productcode: PX3TS-5191CR | EAN/UPC: 0785813031211

€ 2.403,47 excl.btw

Raritan Intelligent Rack Transfer Switch PX3TS-5191CR - Power control unit (rack-mountable) - AC 200-240 V - Ethernet 10/100, RS-232, USB - input: IEC 60320 C20 - output connectors: 8 (IEC 60320 C13, IEC 60320 C19) - 1U

Better power efficiency and less heat
Switch with outlet-level metering and switching
Power metering, energy quality monitoring
Local display showing transfer switch status

Op voorraad: 3 stuk(s)

Levertijd:

Product:
Raritan Intelligent Rack Transfer Switch PX3TS-5191CR

€ 2908,20 incl. 21% btw € 2403,47excl. 21% btw

Winkelwagen Offerte

Omschrijving

Product features

Reliable power for single-corded devices
Anti-arcing relay technology engineered to prevent relay welding. Out-of-phase transfer eliminates stress about planning phases in the cabinet.
Hybrid design
Solid-state components provide speedy transfers. Eliminates electrical arcing that leads to transfer relay failure. Fan-free design for increased reliability.

Specificaties

General

Device Type

Power control unit - rack-mountable

Height (Rack Units)

Power Device

Input Voltage

AC 200-240 V

Input Connectors

2 x power IEC 60320 C20

Power Output Connectors Details

7 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19

Output Voltage

AC 200-240 V

Max Electric Current

16 A

Circuit Protection

Fuse

Networking

Remote Management Interface

Ethernet 10/100, RS-232, USB

Remote Management Protocol

SNMP, SNMP 3, SSH, JSON-RPC

Expansion / Connectivity

Interfaces

1 x modem - 9 pin D-Sub (DB-9) ¦ 1 x management - 9 pin D-Sub (DB-9) ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 2 x monitoring ¦ 1 x USB - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A

Miscellaneous

Features

E-mail notification, redundant power supply, alarm/event log, Automatic Transfer Switch (ATS), fanless, Static Transfer Switch (STS), cascadable, energy metre, Raritan SecureLock Ready

Environmental Parameters

Max Operating Temperature

50 °C

Humidity Range Operating

85%

This data is supplied by 1WorldSync and matched through an automated process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Datasheet_123383
