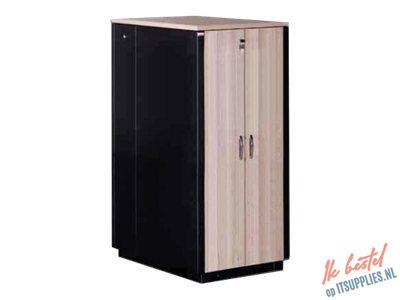

DIGITUS SOUNDproof DN-19 17U-S0-O - Rack - cabinet - black, oak, RAL 9005 - 17U - 19"
Product features
· Reduces noise from mounted equipment in the inside
· Sound emitting isolation material: 75-100 kg/m³, non-flammable (BS 476 Part 6 Class 0, Part 7 Class 1), Halogen free, anti-fungus, covered at all doors and panels, in between the double skins and internal side of the inner skins
· Noise level reduction to 18-21 dB, measured from one meter distance to the enclosure
· Wood decor on front doors and top cover (melamine coated chipboard)
· Top has 30 mm strength and is fixed from the inside of the cabinet
· Wood decor: Oak
· Metal parts in color black (RAL 9005)
· Safety class rating IP20
· Double wing opening front door (18 mm strong melamine coated chipboard) with decorative handles and barrel locking mechanism on top
· 180° door opening angle on front door; 120° door opening angle on rear door
· Single wing opening rear door with lockable pivot lever and hot air exhaust openings
· 1-point-locking-mechanism on all doors
· Rear door carrying 3 way fan module integration area
· Silent fan ventilation system, max 29-30 dB with adjustable thermostat
· Average air flow of a single fan: 106.8 m³/h (based on empty, unequipped rack)
· Side panels lockable and removable (narrow panels on the rear left and right)
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· Sliding cable entry with rubber sealing on the base
· Integrated cable management rings (88x60 mm) in the front left and right
· Brushed cable passage openings between the cable management rings (70x145 mm)
· Delivery incl. plinth, levelling feet and castors
· Equipment mounting depth min.-max.: 160-740 mm
