General
Printer Type

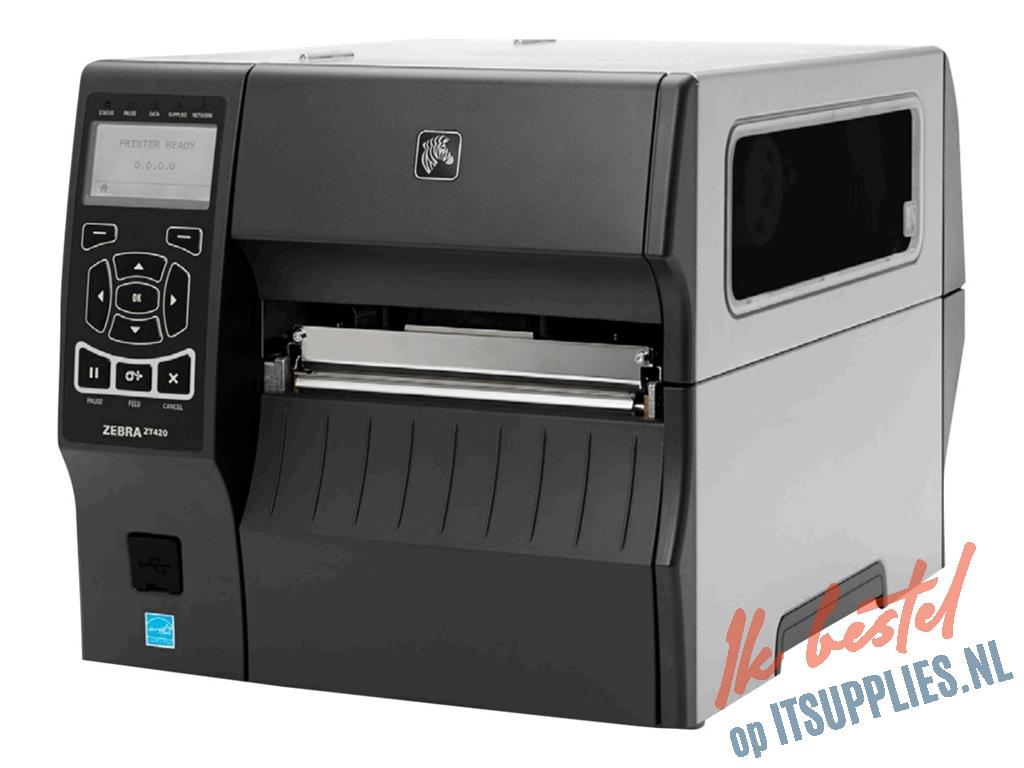

Label printer - direct thermal / thermal transfer - monochrome
Localisation
United Kingdom, Europe
Printer
Print Speed
Up to 254 mm/sec
Built-in Devices
Status LCD, tear bar, UHF RFID encoder
Connectivity Technology
Wireless
Interface
USB 2.0, LAN, serial, USB host, Bluetooth 2.1
Max Resolution (B&W)
300 dpi
Language Simulation
ZPL, ZPL II, EPL, Extensible Mark-up Language (XML)
Features
Realtime clock, transmissive media sensor, reflective media sensor, tear bar
Fonts Included
1 x barcode ¦ 16 x bitmapped ¦ 2 x scalable
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5
RAM
RAM Installed (Max)
256 MB
Flash Memory
Media Handling
Media Type
Continuous paper labels, die cut labels
Max Media Size
Roll (17.8 cm)
Min Media Size (Custom)
51 mm
Max Media Size (Custom)
178 mm x 991 mm
Media Sizes
Roll (5.1 - 17.8 cm)
Max Printing Length
1143 mm
Media Thickness Range
0.058 mm - 0.25 mm
Roll Maximum Outer Diameter
203 mm
Media Feeders
1 x manual - 1 roll - Roll (17.8 cm)
RFID
Compliant Standards
EPC Class 1 Generation 2, ISO/IEC 18000-6C
Networking
Expansion / Connectivity
Connections
1 x RS-232 ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ 1 x USB host - 4 pin USB Type A
Miscellaneous
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class B, CCC, KCC, S Mark, cTUVus
Power
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Environmental Standards
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Dimensions & Weight
