General
Product Type

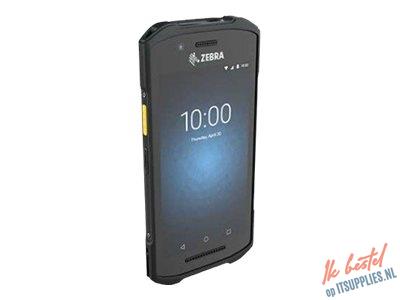

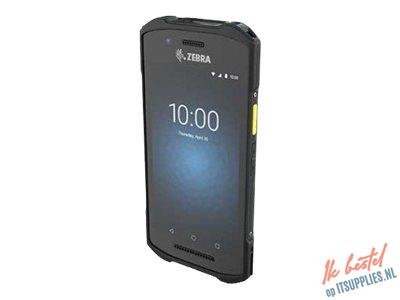

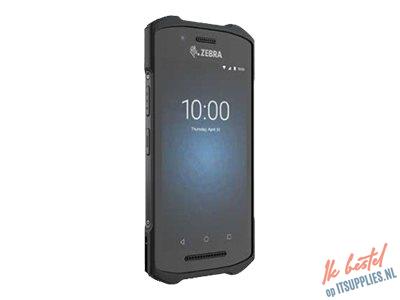

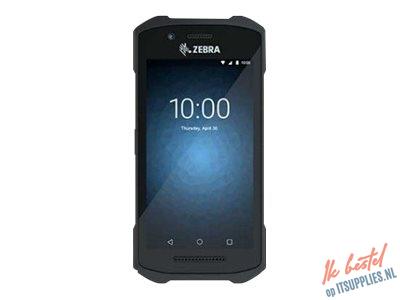

Data collection terminal - rugged
Operating System
Android 10
Display
Type
5" colour - LED backlight
Features
Corning Gorilla glass, capacitive touch screen
Processor
Processor
Qualcomm Snapdragon 660 660
Processor Clock Speed
1.8 GHz
Memory
Supported Flash Memory Cards
microSD, microSDHC, microSDXC
Max Supported Capacity
128 GB
Communications
Cellular Technology
3G, 4G
Cellular Protocols
GSM, UMTS, FDD LTE, TDD LTE
Band
GSM 850/900/1800/1900 / UMTS / LTE B1/B19/B2/B20/B28/B3/B38/B4/B40/B41/B5/B7/B8
Wireless Connectivity
802.11a/b/g/n/ac, NFC, Bluetooth 5.0 LE
Security Protocols & Features
LEAP, WPA, WPA2, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, PEAPv0, PEAPv1, EAP-GTC, EAP-MSCHAPv2, EAP-MSCHAP, IPv6 support, EAP-PWD, WPA-Enterprise
Rear Camera
Sensor Resolution
13 Megapixel
Front Camera
Sensor Resolution
5 Megapixel
Navigation System
Receiver
A-GPS/GPS/GLONASS/Gallileo/Beidou
Multimedia
Audio
Two microphones, speaker
Input Device
RFID
RFID Specification
ISO 15693, Mifare, Felica, ISO 14443A, ISO 14443B
Software
Preloaded Software
Google Mobile Services, Mobility DNA solutions
Expansion and Connectivity
Expansion Slots
1 x microSD ¦ Nano-SIM card
Interfaces
1 x USB-C/USB 2.0
Battery
Miscellaneous
Sensors
Ambient light sensor, proximity sensor, 3-axis accelerometer with MEMS gyro
Features
Audible alarm, Interactive Sensor Technology (IST), LED indicator, capacitive touch screen, SecureBoot, replaceable battery, Drop Protection, SE4710 imager, 1.2 m drop to concrete resistant, verified boot
Included Accessories
Power adapter
Compliant Standards
MIL-STD 810G, IP67, RoHS 2011/65/EU, GMS, REACH SvHC, REACH 2006/1907, Directive 2015/863
Localisation
Rest of World
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
-10 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-30 °C
Max Storage Temperature
70 °C
