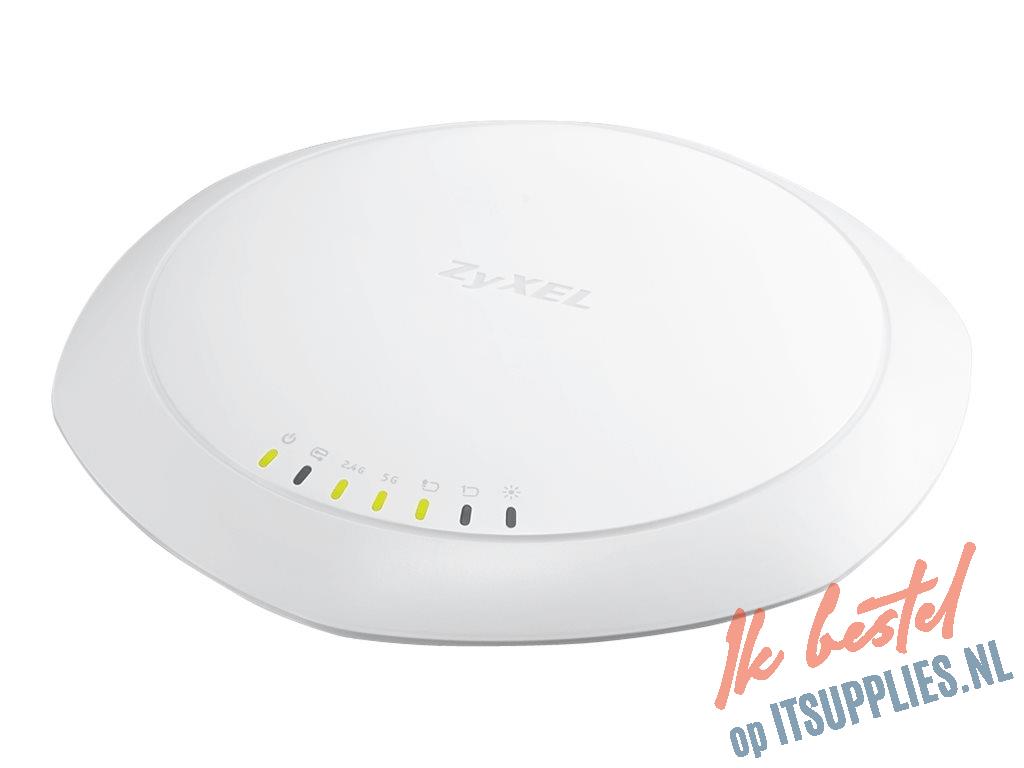

ZyXEL NWA1123-AC Pro - Radio access point

Productcode: NWA1123ACPRO-EU0101F | EAN/UPC: 4718937594665

€ 88,84 excl.btw

Zyxel NWA1123-AC Pro - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - wall / ceiling mountable

Dual-optimized antenna for wall/ceiling-mount installations
Enterprise class 802.11ac AP supports combined data rates of up to 1.75 Gbps
Better coverage with optimized antenna and RF design
Flexible operating modes (stand-alone, root-AP/ repeater mode)
Reliable software and robust hardware design
Set up and forget offers better-than-ever WLAN experience

Op voorraad: 7 stuk(s)

Levertijd:

Product:
ZyXEL NWA1123-AC Pro - Radio access point

€ 107,50 incl. 21% btw € 88,84excl. 21% btw

Winkelwagen Offerte

Omschrijving

Zyxel NWA1123-AC Pro - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - wall / ceiling mountable

Product features

Best interior Wi-Fi performance in style
Users no longer have to compromise between performance and environmental cohesion when deploying business wireless APs. With ultraslim stylish outlook the 3x3 dual-optimized antenna on NWA1123-AC PRO is capable of deliver two different patterns for ceiling- or wall-mount deployment. That frees the AP from being limited to ceiling fixture while maintaining reliable connectivity without causing extra interference. The Zyxel NWA1123-AC PRO is constructed with non-toxic casing materials, making it safe to install in plenum areas, as it doesn't release hazardous vapor emissions in case of fire. This is a life-critical issue - particularly when deploying in public venues such as offices, hotels and schools.
Best-ever user experience
The biggest achievement with the NWA1123-AC PRO is optimized antenna and RF design that create a thoroughly enhanced Wi-Fi experience via a combination of improved software and hardware. Additional improvements to the NWA1123-AC PRO include dynamic channel selection (DCS) and load balancing. DCS avoids interference from co-channel and channel overlapping at initialization, while load balancing allows administrators to easily limit the number of clients associated with each AP. These advanced functions ensure that users can enjoy a stable wireless networking experience over the ideal Wi-Fi channel on the optimal AP.
Zyxel one network experience
Aiming for relieving customers from repetitive operations of deploying and managing a network, Zyxel One Network is designed to simplify the configuration, management, and troubleshooting, allowing Zyxel customers to focus on the business priorities. Zyxel One Network presents an easy-to-use tool, Zyxel One Network Utility (ZON Utility), to realize speed network setup. Zyxel Smart Connect allows Zyxel networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. Zyxel One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
Blending multi-operation flexibility with practical business features
Along with support for stand-alone operating mode, the Zyxel NWA1123-AC PRO PoE access point also provides repeater/root-AP mode compatibility with Zyxel's Unified Pro Series and Unified Series APs. By taking advantage of these features, users can extend wireless connectivity to challenging locations without the bother of troublesome cabling. The NWA1123-AC PRO offers the ideal solution for small businesses through an array of useful features designed for business deployments, including multiple SSID and solid Wi-Fi security provided by WPA2 Enterprise and Layer-2 isolation. All of these practical enhancements coupled with high-performance RF design make the Zyxel NWA1123-AC PRO the best solution for creating flexible Wi- Fi networks for smaller-scale enterprises.
Set up and forget streamlines controller-less deployment
The NWA1123-AC PRO introduces streamlined controllerless deployment with Zyxel Access Point Configurator (ZAC). Just install the AP wherever desired out of the box and the device will automatically acquire its IP address. ZAC will take over the multiple-AP configuration and help to complete firmware upgrades and profile backups when needed in three easy steps, significantly reducing time and effort. Once the configuration has been completed, the NWA1123-AC PRO is able to operate autonomously without additional maintenance via computer or special management tool. The administrator can easily monitor status using any available SNMP tool, making management simple enough for even networking novices to handle.
Dual-optimized antenna
The unprecedented Dual-optimized Antenna is an adjustable internal antenna with "just ?t" pattern options optimized for wall- or ceiling-mount that the installation technician can instantly change the antenna pattern simply via the physical antenna switch without booting the device. If needed, administrators can base on their know-how to perform granular signal optimization per ?oor plan via software con?guration remotely. With the ?exibility, the NWA1123-AC PRO can ?t for wall-mount or ceiling-mount deployment without the hassles of antenna accessory selection and signal coverage adjustment.
Fine art of RF design
The NWA1123-AC PRO isolates RF circuits by solid shielding frames. Thus, RF noise and electromagnetic interference (EMI) is mitigated meanwhile RF performance is enhanced as well. Solid capacitor for longevity All-solid capacitor design provides up to 6 times lifespan than electrolytic capacitors that delivers better stability and reliability.

Specificaties

General

Device Type

Radio access point

Width

20.39 cm

Depth

19.17 cm

Height

3.47 cm

Weight

445 g

Localisation

Europe

Networking

Form Factor

Wall / ceiling mountable

Connectivity Technology

Wireless

Data Transfer Rate

1300 Mbps

Line Coding Format

DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Remote Management Protocol

SNMP, SSH, CLI

Frequency Band

2.4 GHz, 5 GHz

Capacity

Maximum number of configured SSIDs: 16

Features

VLAN support, MAC address filtering, IPv6 support, Multiple SSID support, reset button, Maximum Ratio Combining (MRC), 3T3R MIMO technology, Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, DHCP client, Cyclic Delay Diversity (CDD), Maximum Likelihood Demodulation (MLD)

Encryption Algorithm

TLS, PEAP, TTLS, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WEP

Authentication Method

RADIUS, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP), EAP-FAST

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.3au, IEEE 802.11ab

Aerial

Antenna

Internal

Gain Level

5 dBi

Expansion / Connectivity

Interfaces

2 x 1000Base-T (PoE) - RJ-45

Miscellaneous

Included Accessories

PoE injector, wall/ceiling mounting plate

Cables Included

1 x network cable

MTBF

1,005,235 hours

Compliant Standards

EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, FCC Part 15 E, EN 300 328, BSMI CNS 14336-1, EN 301489-17, EN 301 489-1, LP0002, EN 301 893

Power

Power Over Ethernet (PoE) Supported

PoE

Power Device

Power injector

Power Consumption Operational

12.48 Watt

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10 - 90% (non-condensing)

This data is supplied by 1WorldSync and matched through an automatic process. Truedata is not responsible for errors in this data.

Productvideo

Heb je zelf een goede video voor dit product? Youtube video indienen

Beschikbare brochures

Datasheet_4001
