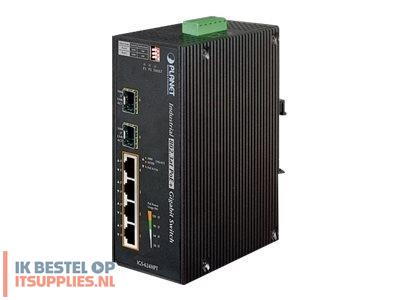

Planet IGS-624HPT - Switch - 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP

Productcode: IGS-624HPT | EAN/UPC: 4711213689505

€ 283,33 excl.btw

PLANET IGS-624HPT - Switch - 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - DIN rail mountable, wall-mountable - PoE+ (120 W) - DC power

High-power PoE for security and public service applications
Intelligent LED indicator for real-time PoE usage
Convenient and reliable power system
High power budget for PoE extension
Environmentally hardened design
Fiber-optical link capability extend the range of network deployment
Adjustable 6-port switch mode or 4 + 2 fiber redundant mode

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Planet IGS-624HPT - Switch - 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP

€ 342,83 incl. 21% btw € 283,33excl. 21% btw

Winkelwagen Offerte

Stuur mij een notificatie bij voorraad

Omschrijving

PLANET IGS-624HPT - Switch - 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - DIN rail mountable, wall-mountable - PoE+ (120 W) - DC power

Product features

High-power PoE for security and public service applications
To fulfill the demand of high-power PoE for network applications, the IGS-624HPT provides 4 10/100/1000 Mbps ports, featuring both IEEE 802.3af and IEEE 802.3at Power over Ethernet Plus (PoE+), that combine up to 30 Watt of power output and data per port over one CAT 5e/6 Ethernet cable. With totally 120 Watt PoE output capability on the whole system, the IGS-624HPT is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices), such as PTZ (pan, tilt and zoom)/speed dome network cameras, multi-channel (802.11a / b / g / n) outdoor wireless LAN access points and other PoE network devices by providing double PoE power, rather than the current conventional 802.3af PoE.
Intelligent LED indicator for real-time PoE usage
The IGS-624HPT helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. Called "PoE power usage", the front panel of the industrial Gigabit PoE+ switch has four LEDs indicating 30 W, 60 W, 90 W and 120 W of PoE power usage.
Convenient and reliable power system
To facilitate the 802.3at high-power PoE usage with the commonly used 48 V DC power input in transportation and industrial-level applications, the IGS-624HPT adopts 48 V DC to 52 V DC power boost technology to solve power source issue, which is not required for special power supplies to achieve the level of high-power PoE+ output. To enhance the operation reliability and flexibility, the IGS-624HPT is equipped with two DC power input connectors for redundant power supply installation.
High power budget for PoE extension
With 30 Watt PoE output capability, the IGS-624HPT can extend much longer distance by using PLANET PoE extender for powering up the IEEE 802.3af PoE PD devices, which can be installed far away. By daisy-chaining multiple PLANET PoE extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.
Environmentally hardened design
The IGS-624HPT is equipped with the rugged IP30 metal case for easy deployment in heavy industrial demanding environments. With IP30 industrial case protection, the IGS-624HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges, which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-624HPT can be placed in almost any difficult environment. The IGS-624HPT also allows either DIN rail or wall mounting for efficient use of cabinet space.
Fiber-optical link capability extend the range of network deployment
The two SFP slots are compatible with 100Base-FX or 1000Base-SX/LX/WDM through SFP (small form factor pluggable) fiber-optic transceivers. The fiber optical uplink capability enables the throughput to all nodes, hooked into the network and the Gigabit Ethernet distance can be extended.
Adjustable 6-port switch mode or 4 + 2 fiber redundant mode
Via the built-in DIP switch, the IGS-624HPT can be configured as 6-port Ethernet switch or 4+2 fiber redundant mode. With the 6-port switch mode, the IGS-624HPT can operate in store-and-forward mechanism with high performance; on the other hand, when in the 4+2 fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link down, it will forward the packet to the other port of the backup pair.

Specificaties

General

Device Type

Switch - 6 ports

Enclosure Type

DIN rail mountable, wall-mountable

Subtype

Gigabit Ethernet

Ports

4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

120 W

Performance

Switching fabric bandwidth: 12 Gbps ¦ Throughput (64-byte packet size): 8.93 Mpps

MAC Address Table Size

1K entries

Features

Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, 6KV ESD Protector, 6KV EFT protector

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at

Status Indicators

Port status, power, PoE, link/activity

Expansion / Connectivity

Interfaces

4 x 1000Base-T RJ-45 PoE+ - 30.8 W

Power

Power Device

Internal power supply

Power Redundancy

Yes

Voltage Required

DC 48 V

Miscellaneous

Compliant Standards

IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IP30

Dimensions & Weight

Width

15.2 cm

Depth

10.7 cm

Height

7.2 cm

Weight

1.539 kg

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

75 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

75 °C

Humidity Range Storage

5 - 95% (non-condensing)

This data is supplied by 1WorldSync and matched through an automatic process. Truedata is not responsible for errors in this data.
