General
Device Type

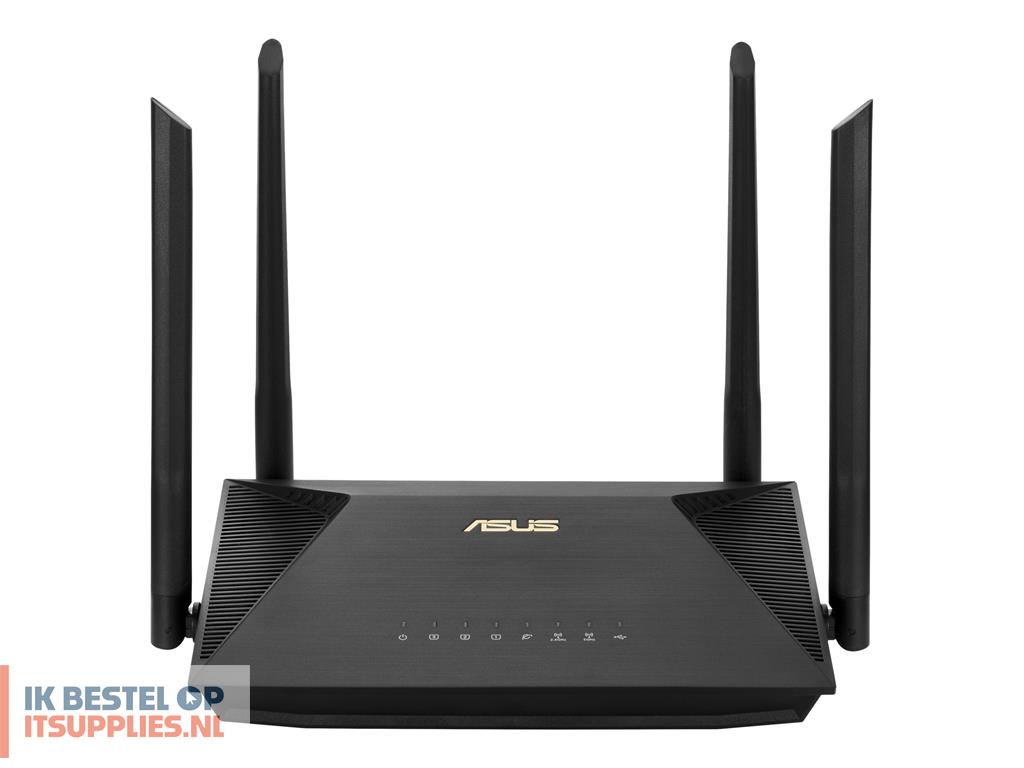

Wireless router - 3-port switch (integrated)
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Frequency Band
2.4 GHz / 5 GHz
Network / Transport Protocol
PPTP, L2TP, PPPoE, DHCP, DDNS
Encryption Algorithm
WPA-Enterprise, WPA2-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal
Features
WOL, IGMP snooping, MAC address filtering, IPv6 support, parental control, Access Point operational mode, QoS, dual WAN connection, RADIUS support, SSH support, WPS, DHCP server, static IP mode, reset button, IPv4 support, port triggering, ASUS Universal repeater, VPN Server, MU-MIMO technology, system log, beamforming technology, Wireless Scheduler, VPN client, ASUS Router App, ASUS Guest Network, VPN Fusion, Airtime Fairness, DMZ support, traffic monitoring, ASUS AiProtection Classic, Bandwidth Limiter, bridge mode, Amazon Alexa support, OFDMA, IPTV support, WPS button
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
Status Indicators
Power, WAN, LAN, USB, 5 GHz, 2.4 GHz
Line Properties
Line Coding Format
1024 QAM, OFDMA
Expansion / Connectivity
Interfaces
WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB: 1 x
Aerial
Aerial
External integrated
Power
Power Device
External power adapter
Voltage Required
AC 110-240 V (50/60 Hz)
Miscellaneous
Cables Included
1 x network cable
Dimensions & Weight
