General
Device Type

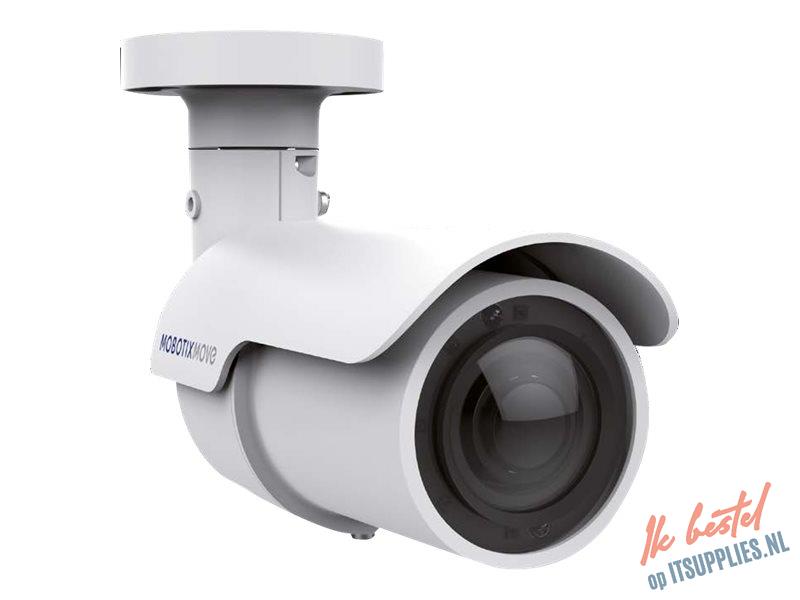

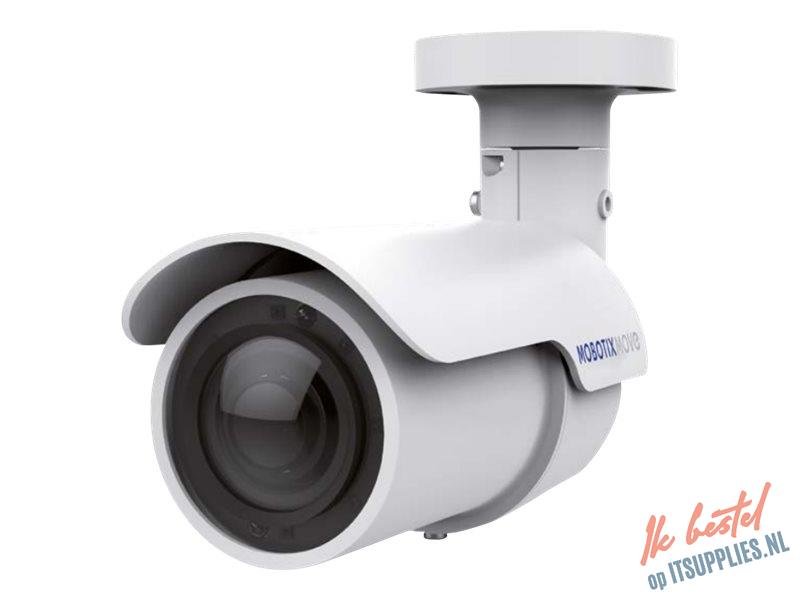

Network surveillance camera
Audio Support
Yes: two-way audio capability
Audio Formats
AAC, G.726, LPCM, G.711
Camera Mount Type
Wall mount, ceiling mount, pole mount
Connectivity Technology
Wired
Camera
Type
Colour - Day&Night - fixed - outdoor, indoor - weatherproof
Digital Video Format
MJPEG, H.264
Max Digital Video Resolution
2688 x 1512
Exposure Range
1 sec - 1/10000 sec
Minimum Illumination
0.1 lux - colour ¦ 0.01 lux - B&W
Frame Rate (max)
30 frames per second
Features
Manual white balance, sharpness control, colour control, progressive scanning, brightness control, contrast control, Wide Dynamic Range (WDR), text stamp, tamper-detection, triple video stream, Audio Detection, 3D Digital Noise Reduction Technology, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, 2D Digital Noise Reduction Technology, CorridorView
Image Sensor
Effective Pixels
2688 x 1512
Lens Construction
Lens Iris
F/1.6 auto iris (DC)
Focus Adjustment
Automatic
Horizontal Field of View (degree)
15 - 35
Vertical Field of View (degree)
9 - 20
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DDNS, DHCP, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, PPPoE, IGMP, QOS
Expansion / Connectivity
Ports
LAN/power - RJ-45 ¦ Audio line in - 3.5 mm jack ¦ Audio line out - 3.5 mm jack
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Miscellaneous
Compliant Standards
FCC, IK10, IP66, LVD
Power
Power Requirements
DC 12 V / AC 24 V / PoE - 2.12 A
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
-30 °C
Max Operating Temperature
60 °C
Relative Humidity (operating)
10 - 90% (non-condensing)
