General
Device Type

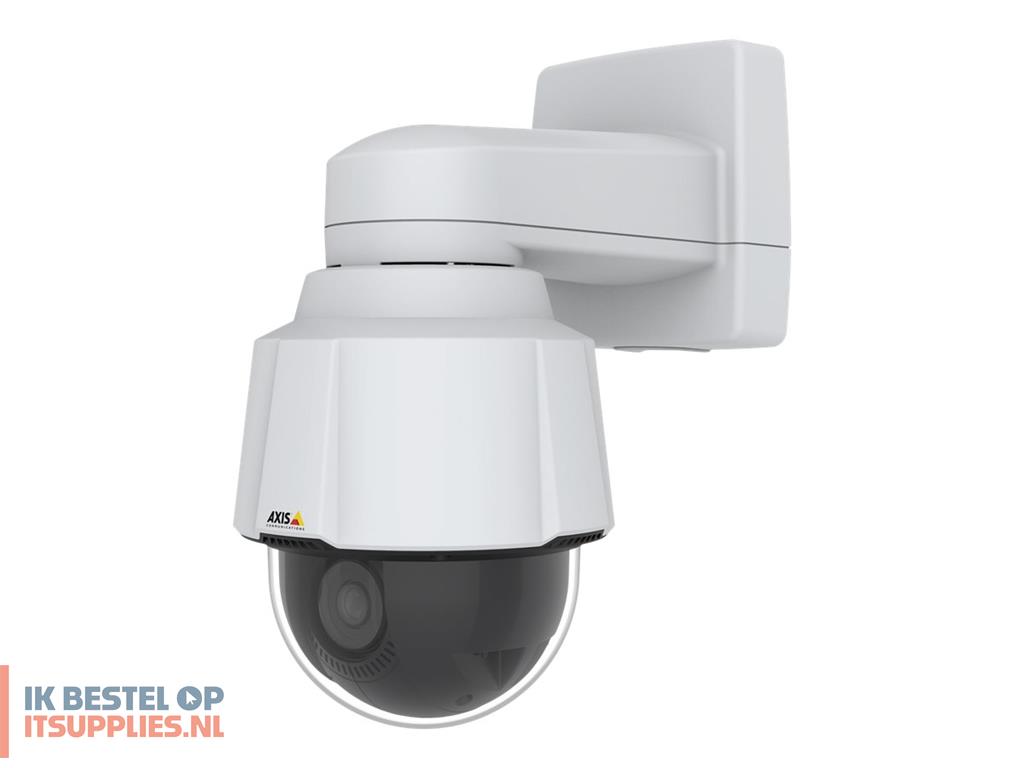

Network surveillance camera
Audio Support
Yes: two-way audio capability
Audio Formats
AAC, G.726, LPCM, G.711, OPUS
Camera Mount Type
Ceiling mount
Connectivity Technology
Wired
Localisation
Argentina, Australia, United Kingdom, Europe
Camera
Type
Colour - Day&Night - pan / tilt / zoom - outdoor, indoor
Digital Video Format
MPEG-4, MJPEG, H.264, H.265
Max Digital Video Resolution
1920 x 1080
Exposure Range
2 sec - 1/66500 sec
Minimum Illumination
0.1 lux - colour - F1.4 - 30 IRE
0.02 lux - B&W - F1.4 - 30 IRE
0.12 lux - colour - F1.4 - 50 IRE
0.04 lux - B&W - F1.4 - 50 IRE
Digital Video Capture Resolution
1920 x 1080, 320 x 180
Frame Rate (max)
50 frames per second
Features
Backlight Compensation (BLC), manual exposure, sharpness control, white balance, colour control, progressive scanning, brightness control, contrast control, Wide Dynamic Range (WDR), 256 preset positions, Electronic Image Stabilizer (EIS), Video Motion Detection Technology, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, infrared-cut filter, Forensic WDR, guard tour, focus recall, Lightfinder 2.0 technology
Image Sensor
Lens Construction
Focal Length
4.3 mm - 137.6 mm
Lens Iris
F/1.4-4.0 auto iris
Focus Adjustment
Automatic
Horizontal Field of View (degree)
2.4 - 58.7
Vertical Field of View (degree)
1.4 - 35.7
Panning
Speed (degree/sec)
Up to 350
Tilting
Speed (degree/sec)
Up to 350
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, NTCIP
Expansion / Connectivity
Supported Memory Cards
SD Memory Card, SDXC Memory Card, SDHC Memory Card
Miscellaneous
Included Accessories
RJ45 push-pull connector, ceiling mount bracket, AXIS PoE+ Midspan (1 port), AVHS Authentication key, spring pipe adapter, U-profile pipe adapter
Compliant Standards
EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, IS13252, FCC CFR47 Part 15 B Class A, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, IEEE 802.3at, IEC/EN 62262, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267
Power
Power Requirements
PoE Class 4
Power Device
AC 120/230 V 19 Watt
Software / System Requirements
Software Included
Windows decoder 1-user licence
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
-30 °C
Max Operating Temperature
50 °C
Relative Humidity (operating)
10 - 100% (non-condensing)
