General
Device Type

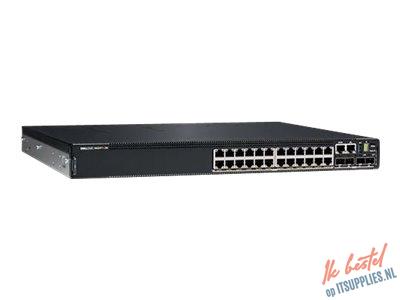

Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Front to back airflow rack-mountable 1U
Subtype
10 Gigabit Ethernet / 25 Gigabit Ethernet
Ports
24 x 10/100/1000/2.5G/5G/10GBase-T (PoE++) + 4 x 25 Gigabit SFP28 + 2 x 100 Gigabit QSFP28
Power Over Ethernet (PoE)
PoE++
Performance
Switching capacity: 1.08 Bpps ¦ Forwarding rate: 1500 Mpps
Capacity
IPv4 routes (static): 1024 ¦ IPv6 routes (static): 1024 ¦ IPv4 routes (dynamic): 8160 ¦ IPv6 routes (dynamic): 4096 ¦ Maximum member ports per LAG: 8 ¦ Maximum dynamic ports per switch stack: 144 ¦ LAG groups: 128 ¦ OSPF routes: 8158 ¦ RIP routes: 512 ¦ ECMP next hops per route: 16 ¦ ECMP groups: 1024 ¦ VLAN routing interfaces: 128 ¦ VLANs supported: 4094 ¦ Multicast entries (IPv4): 1023 ¦ Multicast entries (IPv6): 1021 ¦ ARP entries: 6144 ¦ NDP entries: 2560 ¦ ACL: 100 ¦ Maximum rules per ACL: 1023 ¦ Max ACL rules system-wide: 3914 ¦ Maximum ACL rules per interface (IPv4) egress rules: 511 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 1023 ¦ Maximum ACL rules per interface (IPv6) egress rules: 506 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 1021 ¦ Maximum VLAN interfaces with ACLs applied: 24
MAC Address Table Size
32K entries
Routing Protocol
OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, IPv4-to-IPv6 Multicast
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH-2
Encryption Algorithm
MD5, AES, SSL, TLS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, MDI/MDI-X switch, auto-negotiation, ARP support, VLAN support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Management Information Base (MIB), Dynamic VLAN Support (GVRP), dual firmware images, Network Access Control (NAC), Neighbor Discovery Protocol (NDP), tagged VLAN, redundant fans, Protocol-based VLANs support
Compliant Standards
IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ax
Expansion / Connectivity
Interfaces
24 x 10/100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 PoE+ - 90 W ¦ 4 x 25Gbit LAN SFP28 ¦ 1 x 10/100/1000 Base-T RJ-45 management ¦ 2 x 100Gbit LAN QSFP28 stacking ¦ 1 x USB Type A ¦ 1 x micro-USB 2.0 Type B console ¦ 1 x serial (RS-232) RJ-45 console
Power
Power Device
Internal power supply - hot-plug
Power Redundancy Scheme
1+1 (with optional power supply)
80 PLUS Certification
80 PLUS Platinum
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
FCC Class A certified, UL, cUL, GS, RoHS, WEEE, REACH, ICES Class A, NRTL, VCCI Class A, EAC, CCC Class A, FDA 21CFR1040.10, ACMA, FDA 21CFR1040.11
Manufacturer Selling Program
CAMPUS Smart Value
Software / System Requirements
Software Included
Dell EMC OS6
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
95%
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
95%
