General
Device Type

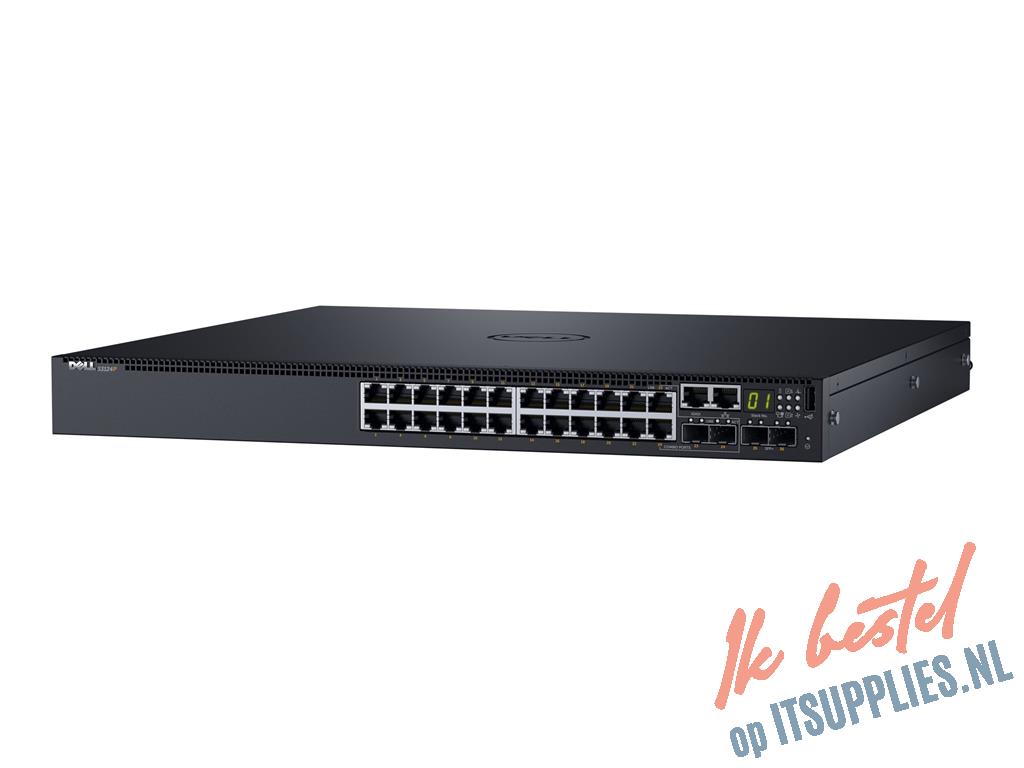

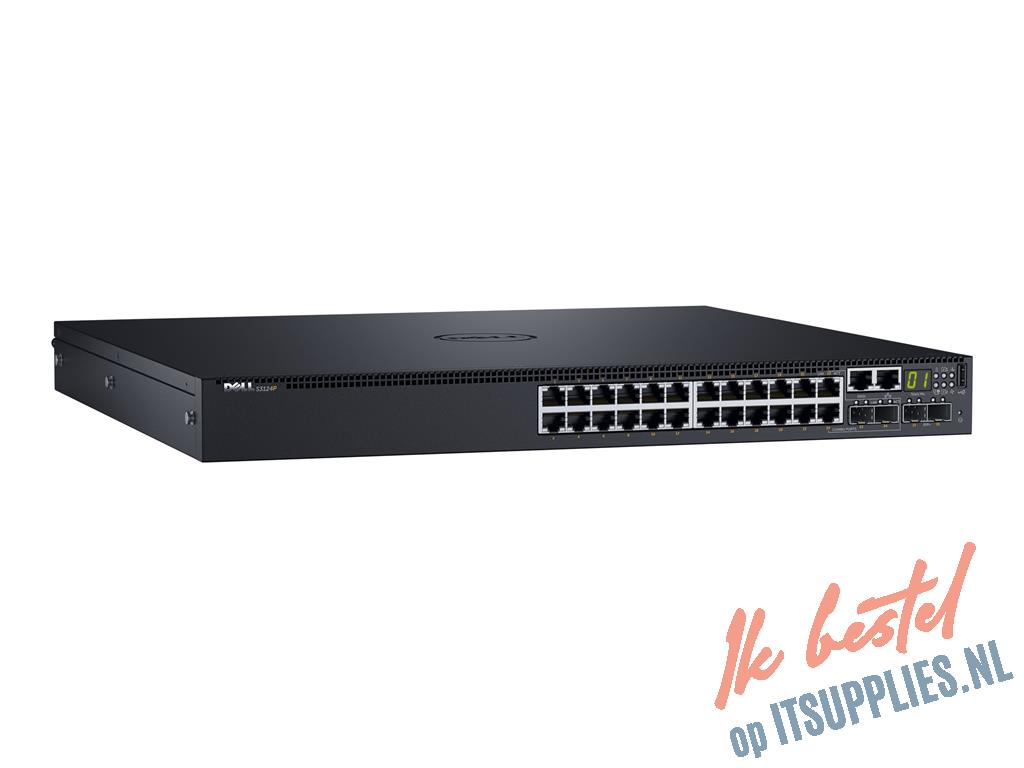

Switch - 24 ports - L3 - Managed - stackable
Bundled Services
1 Year ProSupport with Next Business Day On-Site Service
Enclosure Type
Front to back airflow rack-mountable 1U
Ports

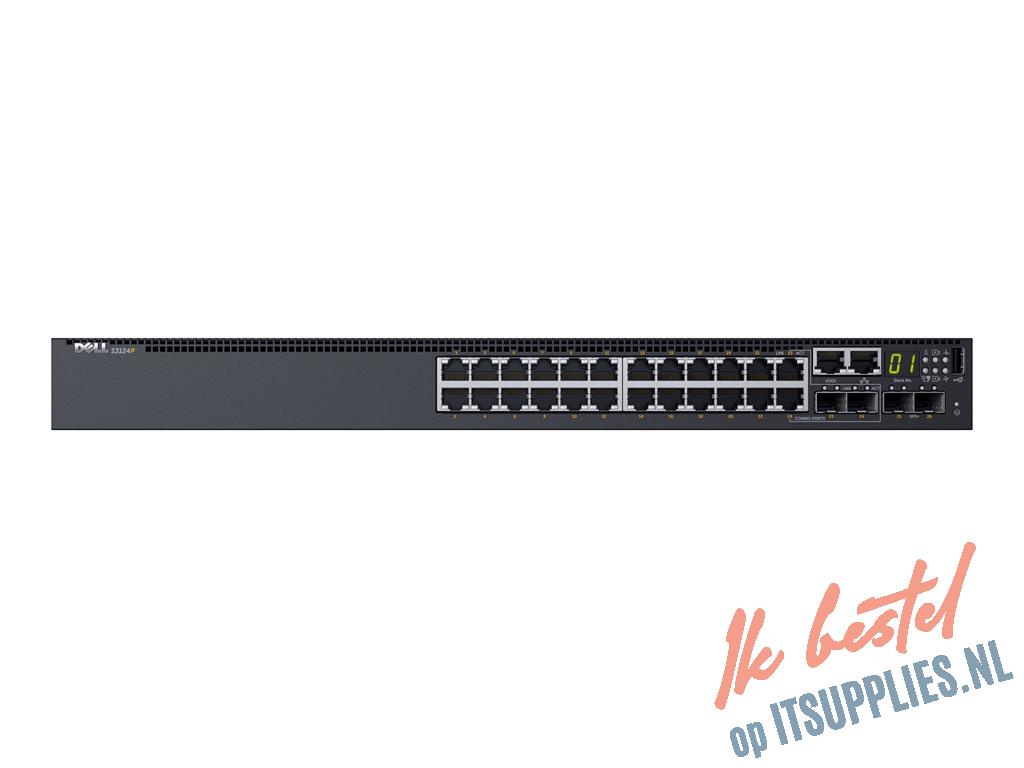

24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)
PoE+
Performance
Switching fabric bandwidth: 212 Gbps ¦ Forwarding performance: 158 Mpps
Capacity
MAC addresses: 32000 ¦ IPv4 routes: 1024 ¦ IPv6 routes: 1024 ¦ IPv4 routes (dynamic): 8160 ¦ IPv6 routes (dynamic): 4096 ¦ Links per group: 16 ¦ Priority queues per port: 8 ¦ Layer 2 VLANs: 4000 ¦ MSTP instances: 64 ¦ VRF-lite instances: 64 ¦ Host table entries (IPv4): 40000 ¦ Host table entries (IPv6): 8000 ¦ Multicast table entries (IPv4): 8000
MAC Address Table Size
32K entries
Routing Protocol
VRRP, OSPFv2, IGMPv3, MSDP
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Authentication Method
RADIUS
Features
MDI/MDI-X switch, port mirroring, DNS client
Compliant Standards
IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP)
Expansion / Connectivity
Interfaces
24 x Gigabit LAN RJ-45 PoE+ - 30.8 W ¦ 2 x 10Gbit LAN SFP+ ¦ 2 x Gigabit LAN RJ-45/SFP ¦ 1 x USB Type A ¦ 1 x serial (RS-232) RJ-45 management ¦ 1 x 1000Base-T RJ-45 management
Power
Power Device

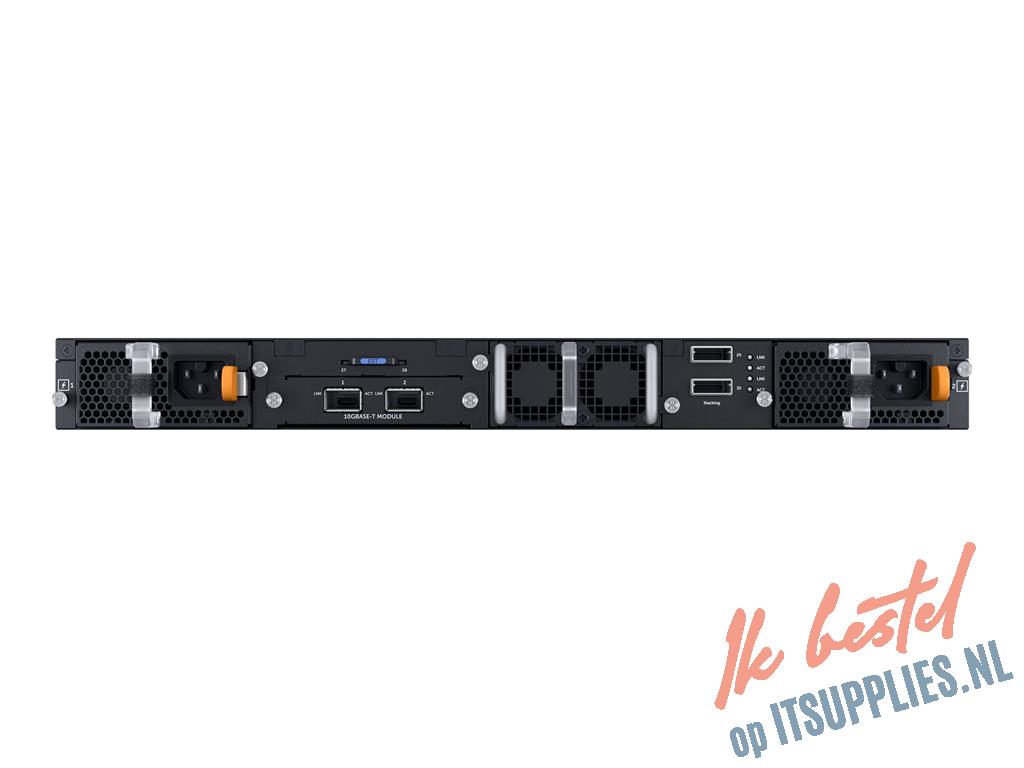

Internal power supply - hot-plug
Installed Qty
1 (installed) / 2 (max)
Power Redundancy Scheme
1+1 (with optional power supply)
Miscellaneous
Compliant Standards
EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC CFR47 Part 15 B, EN 60825-1, ISO 7779, VCCI V-3, EN 60825-2, ICES-003 issue 4 Class A, EN 55024-2:1998+A1:2001+A2:2003, EN 300 386 V1.4.1, AS/NZS CISPR22:2006 Class A, IEC/UL/CSA/EN 60950-1, EN 55022:2006+A1:2007
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
65 °C
