Gigabyte BRIX s GB-BRR7H-4800 (rev. 1.0)

Productcode: GB-BRR7H-4800 | EAN/UPC: -

€ 487,12 excl.btw

Barebone - Ultra Compact PC Kit - 1 x Ryzen 7 4800U / 1.8 GHz - RAM 0 GB - Radeon Graphics - 2.5 GigE - Bluetooth 5.2 - WLAN: 802.11a/b/g/n/ac/ax - Bluetooth 5.2

Op voorraad: 0 stuk(s)

Levertijd:

Product:
Gigabyte BRIX s GB-BRR7H-4800 (rev. 1.0)

€ 589,42 incl. 21% btw € 487,12excl. 21% btw

Winkelwagen

Stuur mij een notificatie bij voorraad

Omschrijving

Gigabyte BRIX s GB-BRR7H-4800 (rev. 1.0) - Barebone - Ultra Compact PC Kit - 1 x Ryzen 7 4800U / 1.8 GHz - RAM 0 GB - Radeon Graphics - 2.5 GigE, Bluetooth 5.2 - WLAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Specificaties

General

Type

PC barebone

Product Form Factor

Ultra Compact PC Kit

Processor / Chipset

CPU

AMD Ryzen 7 4800U

Clock Speed

1.8 GHz

Max Turbo Speed

4.2 GHz

Number of Cores

8-core

CPU Qty

Max CPU Qty

Cache Memory

Installed Size

L3 Cache - 8 MB

Cache Per Processor

8 MB

RAM

Installed Size

0 GB / 64 GB (max)

Technology

DDR4 SDRAM

Form Factor

SO-DIMM 260-pin

Slots

2 (Total) / 2 (empty)

Hard Drive

Type

No HDD

Storage Controller

Type

1 x SATA

Controller Interface Type

SATA 6Gb/s

Channel Qty

Optical Storage

Type

No optical drive

Monitor

Monitor Type

None.

Graphics Controller

Graphics Processor

AMD Radeon Graphics

Video Interfaces

HDMI, DisplayPort, USB-C

Max Monitors Supported

Networking

Wireless LAN Supported

Yes

Wireless NIC

Intel Wi-Fi 6 AX 200

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.2

Expansion / Connectivity

Bays

1 (total) / 1 (free) x internal 2.5"

Slots

1 (total) / 0 (free) x M.2 Card - 2230 (Key A-E) ¦ 1 (total) / 1 (free) x M.2 Card - 2280

Interfaces

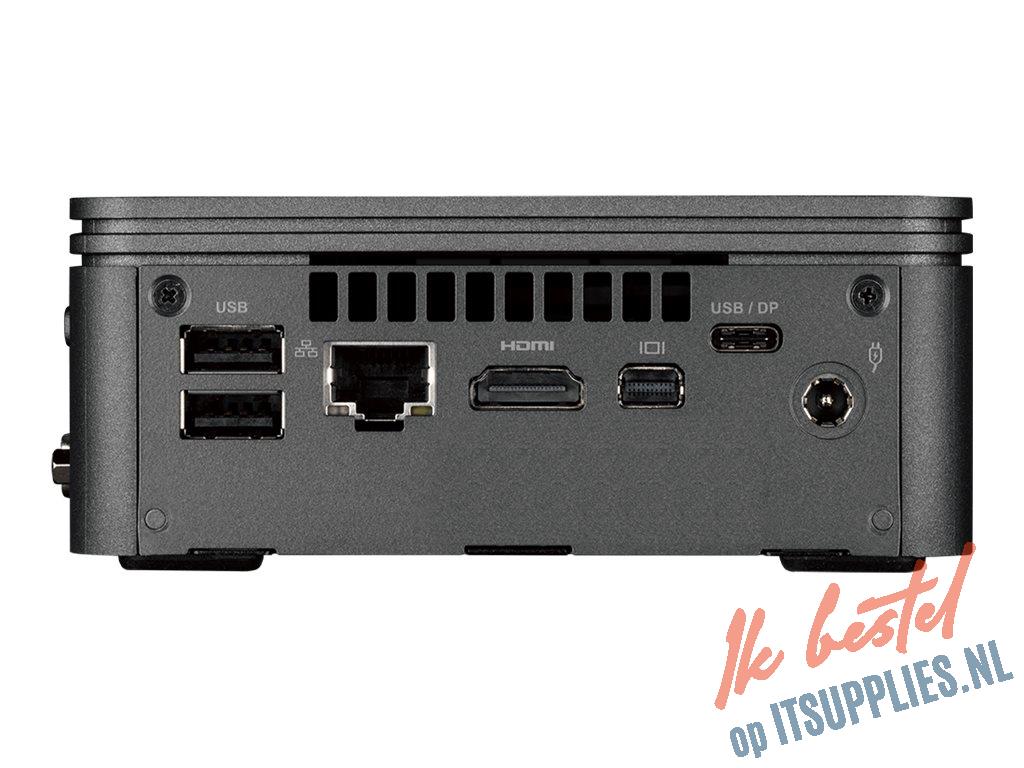

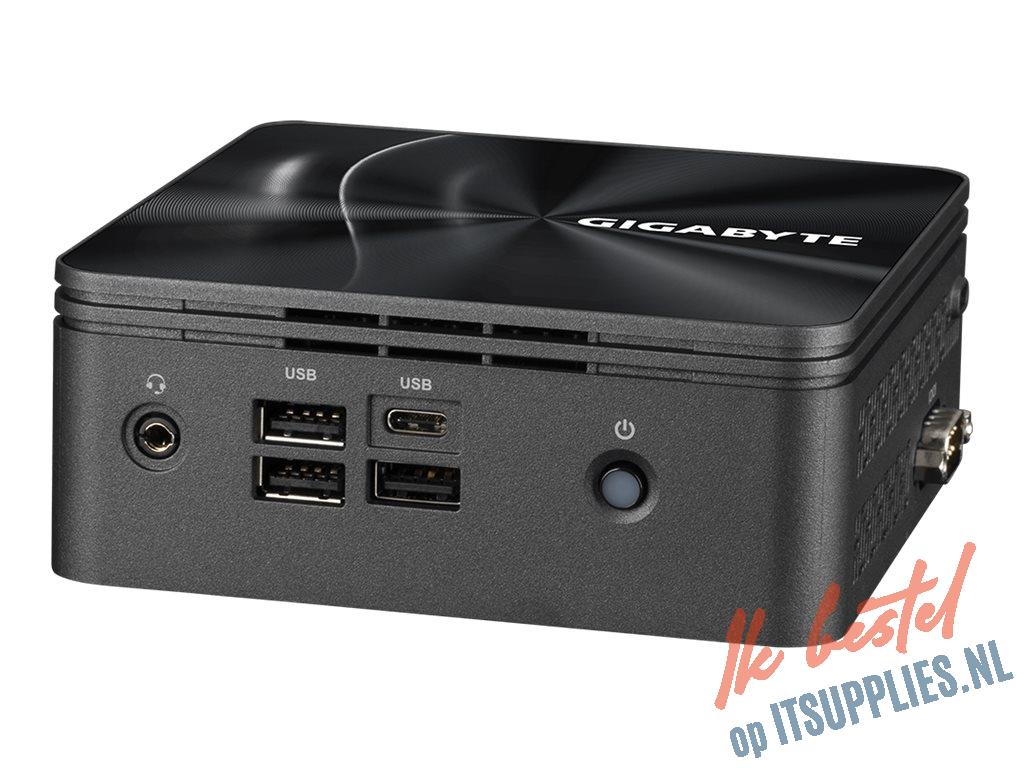

5 x USB 3.2 Gen 1 (3 front, 2 rear) ¦ 1 x HDMI ¦ 1 x Mini DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x headphones/microphone (1 in front) ¦ 2 x DisplayPort/USB-C 3.2 Gen 2 (1 front, 1 rear) ¦ 1 x serial

Miscellaneous

Included Accessories

VESA wallmount adapter

Theft/Intrusion Protection

Security lock slot (cable lock sold separately)

Security Slot Type

Kensington security slot

VESA Mounting Interface

100 x 100 mm, 75 x 75 mm

Compliant Standards

HDCP 2.2

Power

Device Type

Power adapter

Voltage Required

AC 120/230 V (50/60 Hz)

Power Provided

90 Watt

Operating System / Software

OS Provided

No operating system

Dimensions & Weight

Width

11.95 cm

Depth

11.95 cm

Height

4.68 cm

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

35 °C

This data is supplied by 1WorldSync and matched through an automatic process. Truedata is not responsible for errors in this data.
