General
Product Form Factor
Mini PC
Sensors
Infrared (IR) sensor
Localisation
Region: Europe
Processor / Chipset
CPU
Intel Core i5 (10th Gen) 10210U
CPU Upgradability
Not upgradable
Processor Main Features
Intel Virtualization Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT)
Cache Memory
RAM
Installed Size
0 GB / 64 GB (max)
Form Factor
SO-DIMM 260-pin
Slots
2 (Total) / 2 (empty)
Features
Dual channel memory architecture
Hard Drive
Storage Controller
Controller Interface Type
SATA 6Gb/s / PCIe 3.0 x4 (NVMe)
Optical Storage
Card Reader
Supported Flash Memory Cards
SDXC UHS-II Memory Card
Monitor
Graphics Controller
Graphics Processor
Intel UHD Graphics
Video Interfaces
HDMI, USB-C
Audio Output
Sound Output Mode
7.1 channel surround
Compliant Standards
High Definition Audio
Networking
Ethernet Controller
Intel I219-V
Wireless LAN Supported
Yes
Wireless NIC
Intel Wireless-AX MAC
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, 802.11ax
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Expansion / Connectivity
Slots
1 (total) / 1 (free) x M.2 Card - 2242/2280 (Key M)
Interfaces

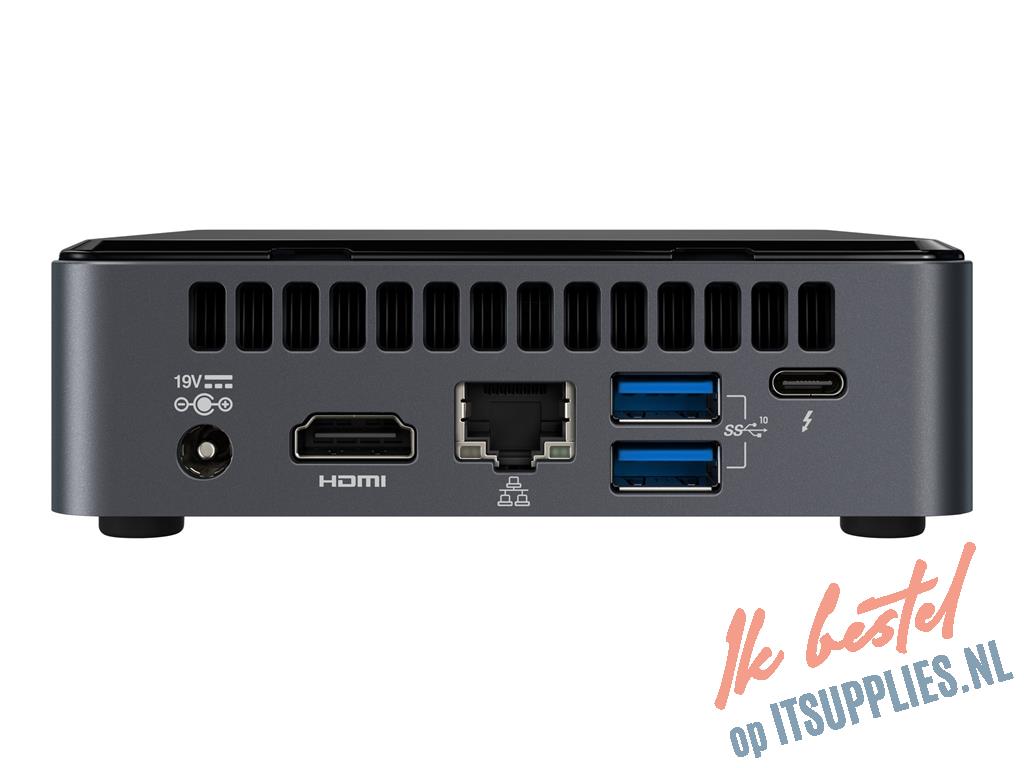

3 x USB 3.1 Gen 2 - Type A (1 front, 2 rear) ¦ 2 x Thunderbolt 3/USB-C 3.1 Gen 2 (1 front, 1 rear) (one of them is fast-charging) ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) - RJ-45
Miscellaneous
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot
Compliant Standards
CISPR 24, ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, AS/NZS 4268, FCC Part 15 E, BSMI CNS 13438, REACH, EN 62311, EN 300.440, China RoHS, EN 300 328, EN 301 489-1, CISPR32/EN55032, KN32, KN35, AS/NZS 2772.2, EN 301 893, IEC/EN/UL 60950-1, EN 301 489-3, EU RoHS, IEC/EN/UL 62368-1, EN 301 489-17, ARPANSA, Taiwan BSMI RoHS, AS/NZS CISPR 32, VCCI 32
Power
Voltage Required
DC 12 - 19 V
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
