General
Device Type
3LCD projector
Projector
Brightness
3000 ANSI lumens
Image Size
147.3 cm - 279.4 cm
Projection Distance
0.1 m - 0.51 m
Resolution
WXGA - WXGA (1280 x 800) (native) / 1920 x 1200 (resized)
Max Sync Rate (V x H)
120 Hz x 100 kHz
Bulb life cycle
Up to 4000 hour(s) - normal mode ¦ Up to 8000 hour(s) - economic mode
Controls & Adjustments
Keystone correction
Features
Color Management System, JPEG photo playback, wall colour correction, 3LCD Technology, PJlink, Crestron RoomView, DICOM Simulation Mode, Direct Power Off, Auto Power Off, built-in test pattern, auto power on, USB Viewer, Carbon Savings Meter, USB Display, Auto Eco Mode, High Altitude Mode
Lens
Type
Ultra short-throw lens
Keystone Correction Direction
Horizontal, vertical
Vertical Keystone Correction
-10 / +10
Horizontal Keystone Correction
-10 / +10
Video Input
TV System
NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60, NTSC 3.58
Analogue video Signal
RGB, composite video
Video Interfaces
VGA, HDMI, composite video
Video Modes
480p, 720p, 480i, 576i, 576p, 1080/60i, 1080/50i
LAN and Wireless Image Transferring Protocols
Wired LAN
Speakers
Output Power / Channel
20 Watt
Speakers
1 x mixed channel
Expansion / Connectivity

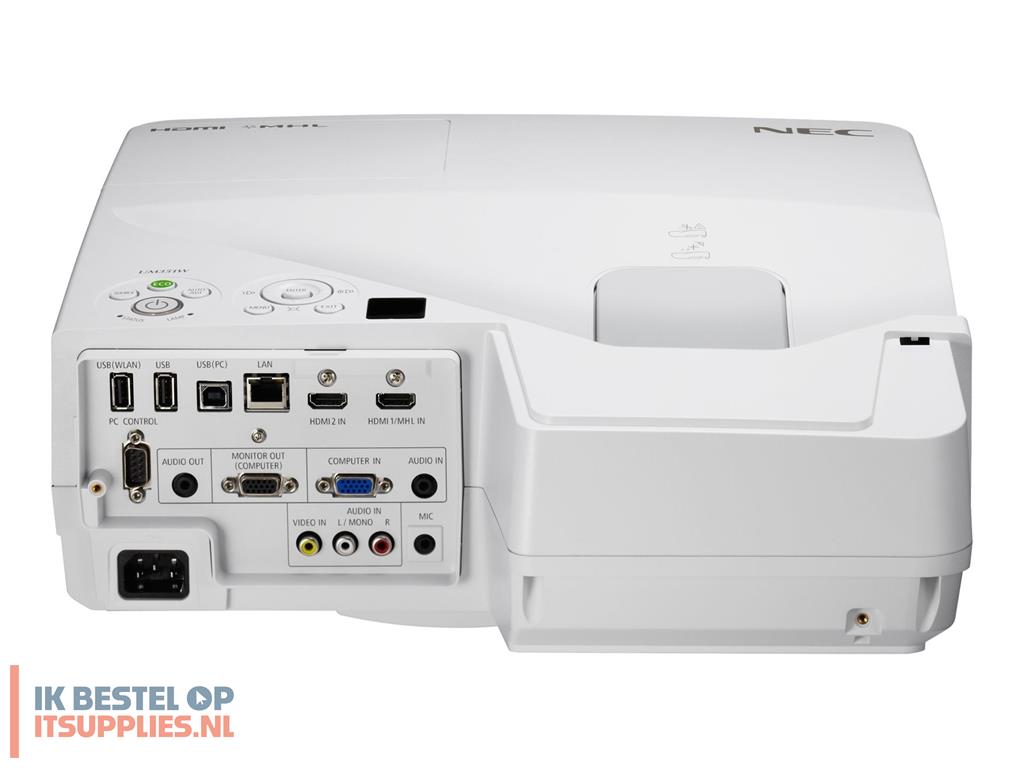

Interfaces
1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA / component video input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x HDMI input - 19 pin HDMI Type A ¦ 1 x microphone - mini-phone 3.5 mm ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x audio line-in - RCA x 2 ¦ 1 x network - RJ-45 ¦ 1 x Mobile High-Definition Link (MHL) / HDMI - 19 pin HDMI Type A
Miscellaneous
Included Accessories

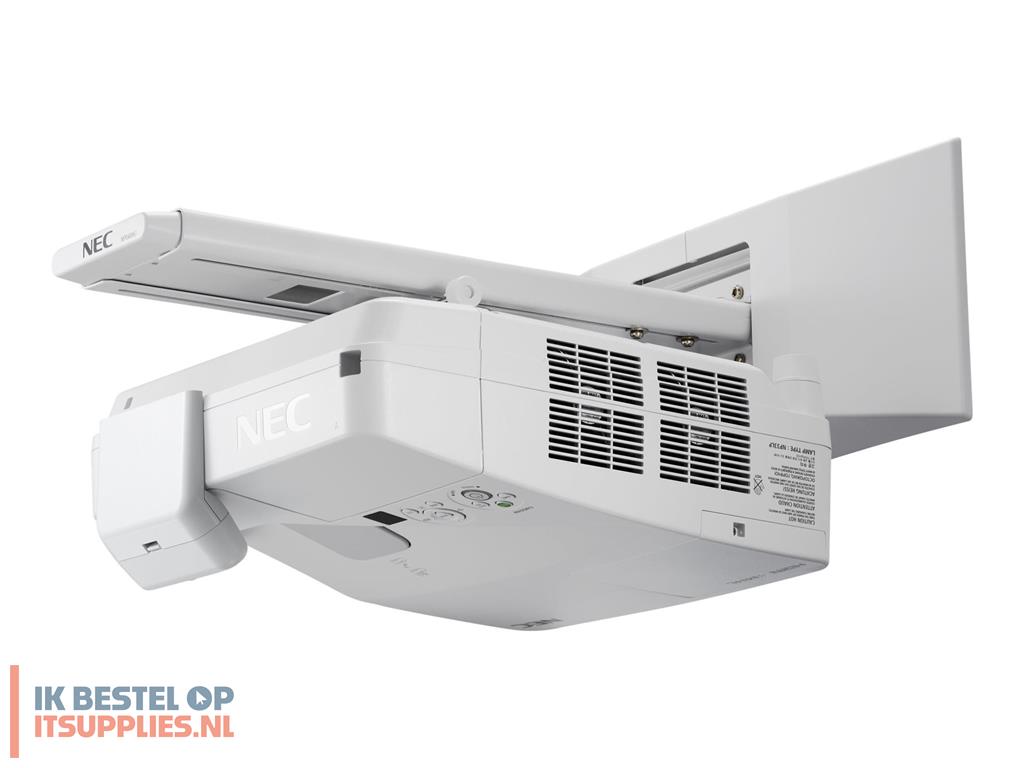

2 Interactive Pens, wireless remote control, security label, NEC NP04WK wall mounting kit, NEC NP04Wi interactive module
Cables Included
1 x VGA cable ¦ 1 x network cable - 3 m
Security Features
Security lock slot (cable lock sold separately), password protection, security bar, security label, keypad lock
Compliant Standards
TUV GS, RoHS, GOST-R, ERP
Power
Nominal Voltage
AC 120/230 V (50/60 Hz)
Power Consumption Operational
285 Watt
Power Consumption Stand by
0.5 Watt
Dimensions & Weight
Manufacturer Warranty
Service & Support
EMEA warranty - 3 years ¦ EMEA warranty - lamp - 6 months / 1000 hours
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 80% (non-condensing)
Sound Emission (Economic Mode)
27 dB
